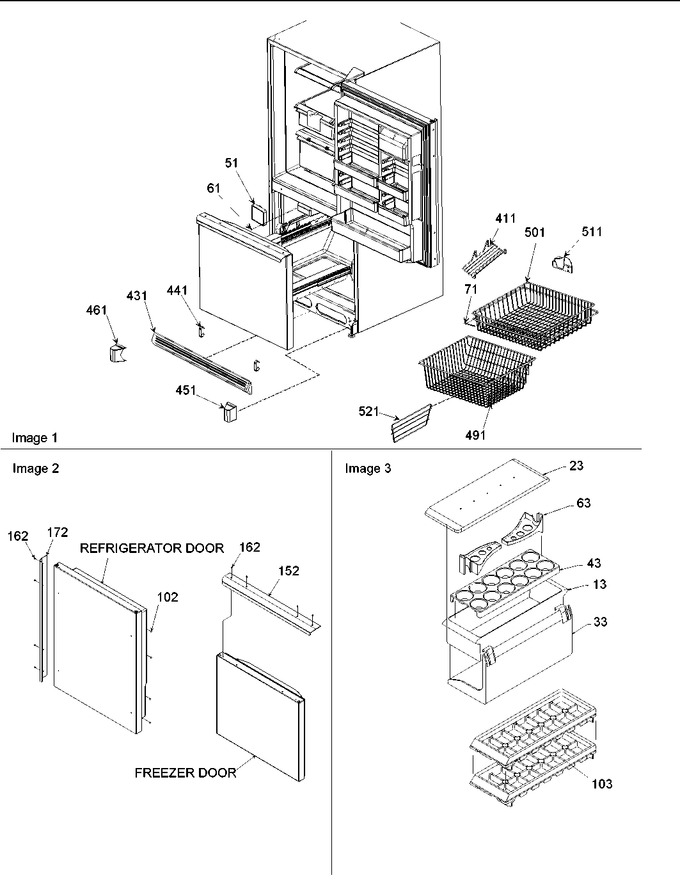

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10423131		Bin, Utility				$ 31.13
23	10436404		Lid, Utility				$ 60.85
33	10448903		Rack, Bottle		Appelez-nous	-
43	10436506		Tray, Egg				$ 8.28
51	D7874403		Cover-fl Tb/plug		Appelez-nous	-
61	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
63	12103905		Snugger, Door Shelf		Appelez-nous	-
71	10508506		Handle, Basket/shelf		Appelez-nous	-
102	WP12246608		Plug, Handle Hole (blk)   (Replaces: 12246603)			Immediately	$ 7.76
103	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 45.56
152	12572602B		Handle,extr Fz(black)		Appelez-nous	-
162	M0239654		Screw, E Sm (blk)		Appelez-nous	-
172	12572601B		Handle,extr Ref(black)		Appelez-nous	-
411	12228201		Rack, Ice Tray		Appelez-nous	-
431	10474801		Grille, Toe (black)		Appelez-nous	-
441	12582301		Clip,toe Grille		Appelez-nous	-
451	12596701B		Cover,anti Tip-r.h.(black)		Appelez-nous	-
461	12596702B		Cover,anti Tip-l.h.(black)		Appelez-nous	-
491	12564301		Basket,33 Fz Lwr		Appelez-nous	-
501	12564401		Basket,33 Fz Uppr		Appelez-nous	-
511	12351101		Shield, Ice		Appelez-nous	-
521	12525301		Divider,fz Basket		Appelez-nous	-
