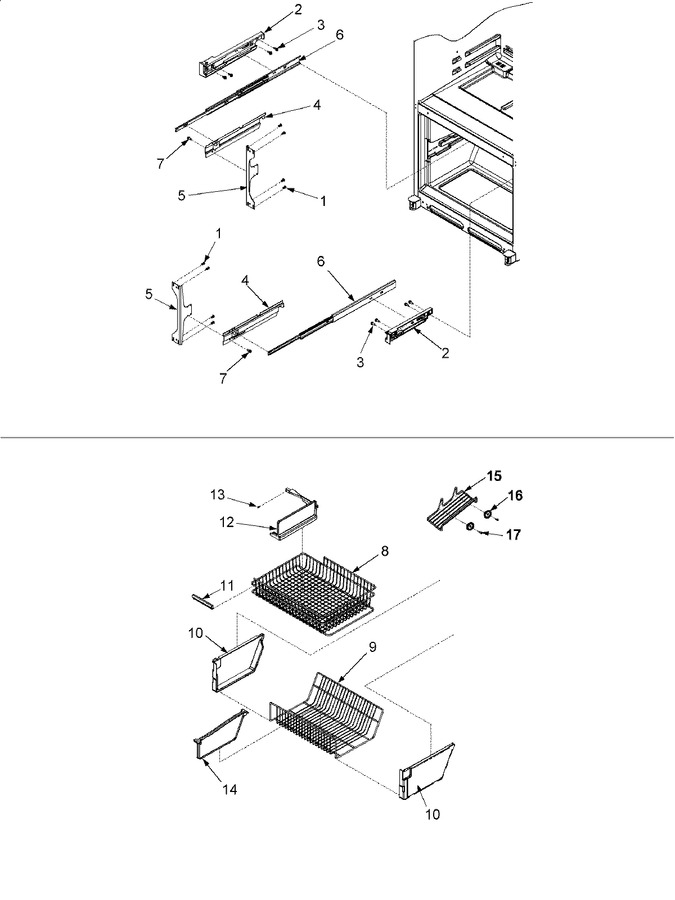

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
2	67001247		Adapter (rt)				$ 77.75
2	67001246		Adapter (lt)				$ 81.44
3	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
4	67001248		Bracket, Drawer Slide (lt)		Appelez-nous	-
4	67001249		Bracket, Drawer Slide (rt)		Appelez-nous	-
5	67001262		Bracket, Door		Appelez-nous	-
6	67002767		Slide, Drawer				$ 154.28
7	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
8	67002765		Basket, Upper		Appelez-nous	-
9	67002766		Basket, Lower Fz		Appelez-nous	-
10	67002920		End Cap, Basket (lwr-rt)		Appelez-nous	-
10	67002919		End Cap, Basket (lwr-lt)		Appelez-nous	-
11	10508506		Handle, Basket/shelf		Appelez-nous	-
12	67001723		Divider, Basket (upper)		Appelez-nous	-
13	67001310		Screw		Appelez-nous	-
14	67002872		Divider, Basket		Appelez-nous	-
15	12646501		Rack, Ice Tray		Appelez-nous	-
16	10972101		Spacer, Ice Rack				$ 7.82
17	WP67006908		Screw   (Replaces: M0230919)			Immediately	$ 8.78
