Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPM0500703 Seal, O Ring   (Replaces: M0500703) Special Order $ 10.92

2 W10815413 Funnel, Drain   (Replaces: D7753903) In-Stock Immediately $ 49.05

3 A4539607 Pop Rivet Appelez-nous -
5 67001066 Tube, Drain Special Order $ 55.82

6 67001067 Clip, Drain Tube Special Order $ 9.20

7 A3076901 Plug-button Special Order $ 5.70

8 WP67006715 Screw, Sm   (Replaces: M0241508) Special Order $ 7.19

9 67001239 Hinge, Bottom E-ct (wht) Appelez-nous -
10 W11177593 Brake, Foot   (Replaces: 10354001) Special Order $ 11.60

11 67002223 Toe Grille Assy (wht) Appelez-nous -
12 67001073 Ladder, Center Special Order $ 54.18

13 67002489 Ladder, L/r Side Special Order $ 71.09

14 W10709795 Screw   (Replaces: M0231425) Special Order $ 13.13

15 67006425 Screw, Sm   (Replaces: M0238642) In-Stock Immediately $ 6.95

16 12561901W Cover, Lwr Hinge (wht) Special Order $ 6.37


    View Diagram in Separate Window     Print Icon   Print Part List

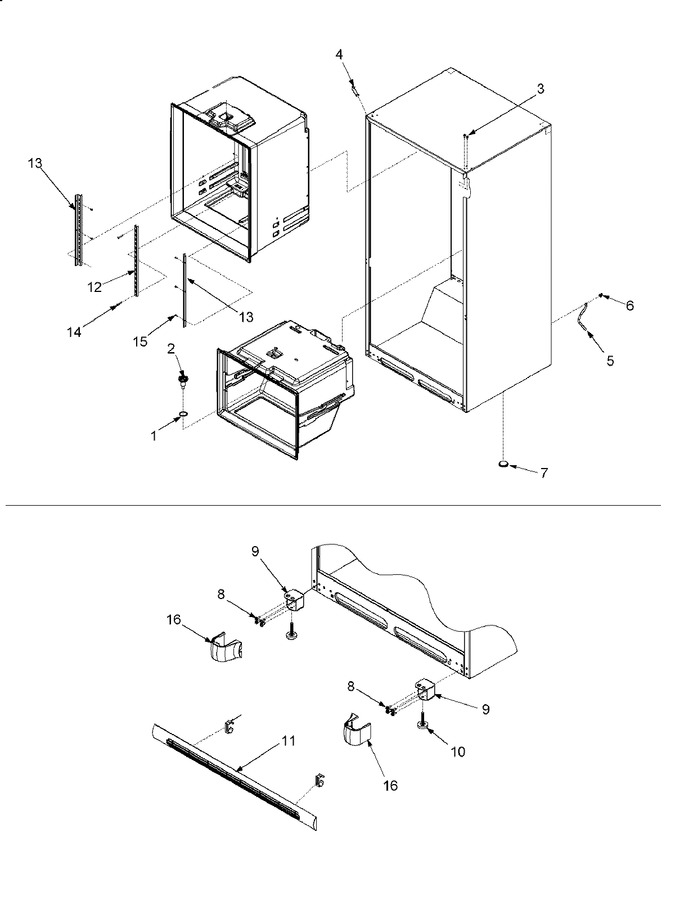

Diagram for ARB2517CW (BOM: PARB2517CW0)
