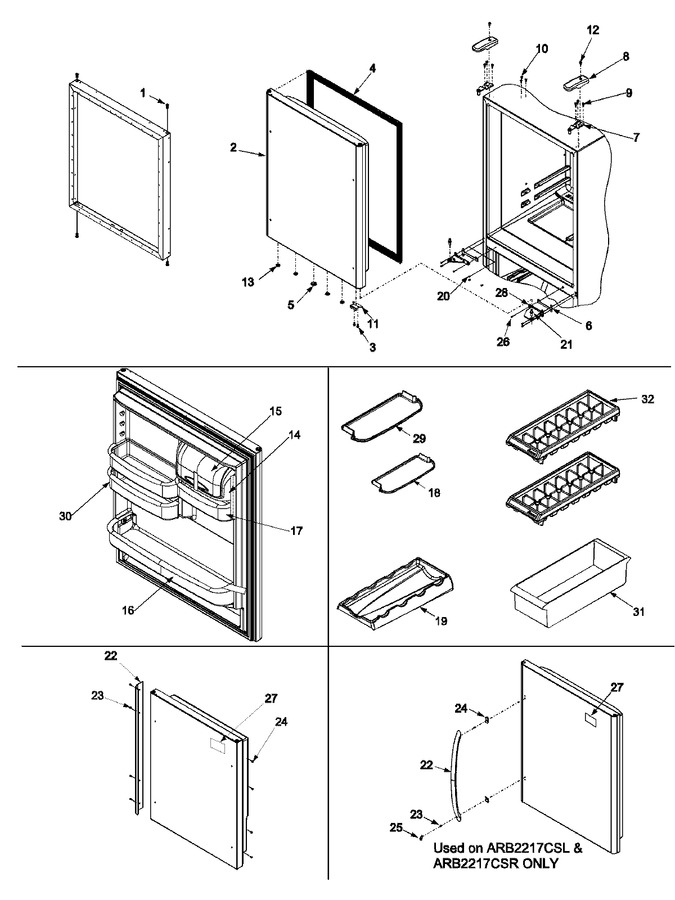

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10961001		Bushing, Door (wht)		Appelez-nous	-
2	67002475		Ref Dr Foam Assy(wht)		Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
4	W10443317		Gasket, Ref Door (wht)   (Replaces: 12683805W)				$ 349.32
5	A3080002		Plug, Button (wht)		Appelez-nous	-
6	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.00
7	WP12566606ED		Hinge, Top (blk)   (Replaces: 67001011)			Immediately	$ 44.89
8	67001014		Cover, Top Hinge (wht)				$ 21.28
9	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.38
10	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
11	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 65.99
12	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.19
13	67001015		Plug, Button (wht)		Appelez-nous	-
14	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
15	WP67003637		Door, Dairy   (Replaces: 67002842)			Immediately	$ 78.73
16	67002477		Retainer, Door		Appelez-nous	-
17	67003776		Bucket, Ref Dr (large)		Appelez-nous	-
18	67001655		Pad, Grip Med Bucket		Appelez-nous	-
19	67001656		Trivet, Bottle				$ 69.04
20	WP489349		Screw, Tf   (Replaces: M0239730)			Immediately	$ 7.88
21	12002311		Pin, Hinge (ctr)   (Replaces: 10351003)				$ 7.85
22	67001221		Extruded Handle, Ref Dr (wht)		Appelez-nous	-
23	67003215		Screw, Sm (wht)   (Replaces: 67001692)				$ 13.36
24	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
26	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.02
27	Y12528501		Nameplate (amana Plus)			Immediately	$ 59.75
28	W11689473		Hinge, Center (wht)   (Replaces: 67001168)				$ 66.47
29	67002088		Pad, Gripper (large)		Appelez-nous	-
30	67003776		Bucket, Ref Dr (large)		Appelez-nous	-
31	10423131		Bin, Utility				$ 31.13
NI	WP841180A		Tray, Ice   (Replaces: 67001205)			Immediately	$ 45.56
