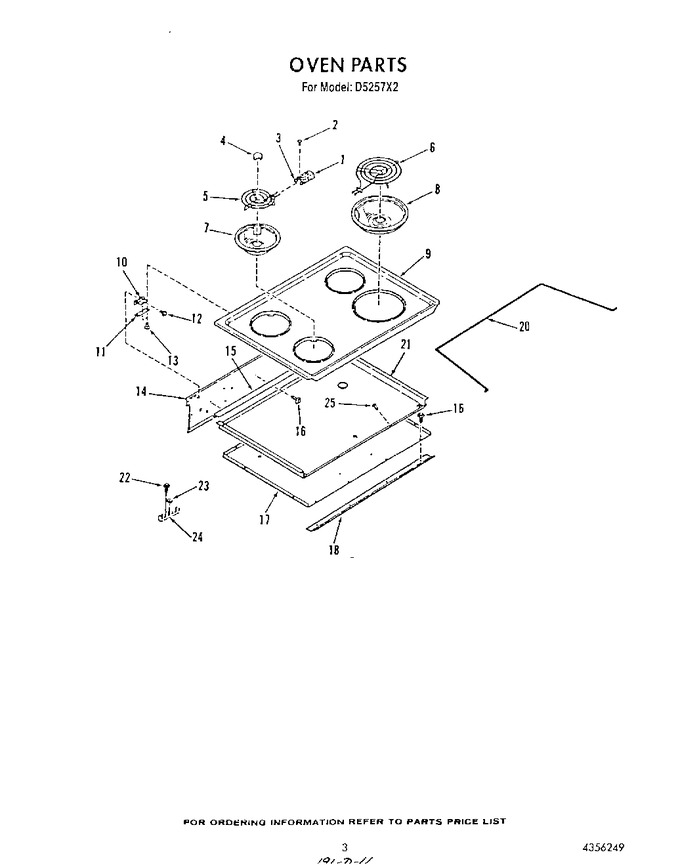

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330031		Receptacle, Element   (Replaces: 4343198)			Immediately	$ 17.93
2	4338182		Screw		Appelez-nous	-
3	WP4332752		Clip, Element Receptacle   (Replaces: 4343188)				$ 7.18
4	4332924		Medallion		Appelez-nous	-
5	WPY04100165		6`` Surface Unit (3)   (Replaces: 4334590)			Immediately	$ 56.92
6	WP660533		8`` Surface Unit (1)   (Replaces: 4334586)			Immediately	$ 40.21
7	WPW10196406		6`` Burner Bowl (3)   (Replaces: 4352552)			Immediately	$ 12.05
8	W10196405RW		8`` Burner Bowl (1)   (Replaces: 4352553)			Immediately	$ 19.64
9	4334227		Chrome Cooktop		Appelez-nous	-
10	4332197		Hinge, Main Top		Appelez-nous	-
11	4332273		Mounting Bracket, Hinge		Appelez-nous	-
12	4326322		Screw, No.10-32 X 5/16		Appelez-nous	-
13	4327216		Screw, No.6-32 X 1/4		Appelez-nous	-
14	4336870		Cover, Wire		Appelez-nous	-
15	4343035		Shield, Rear Wire		Appelez-nous	-
16	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
17	4343189		Bottom, Burner Box		Appelez-nous	-
18	4343190		Extension, Burner Box		Appelez-nous	-
20	4338405		Support Rod, Main Top		Appelez-nous	-
21	4354959		Top, Burner Box		Appelez-nous	-
22	4331572		Screw, No.10-32x1		Appelez-nous	-
23	WP776338		Nut   (Replaces: 4338637)				$ 18.29
24	WP8203546		Junction Block   (Replaces: 4326821)			Immediately	$ 27.12
25	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4343109)				$ 7.38
