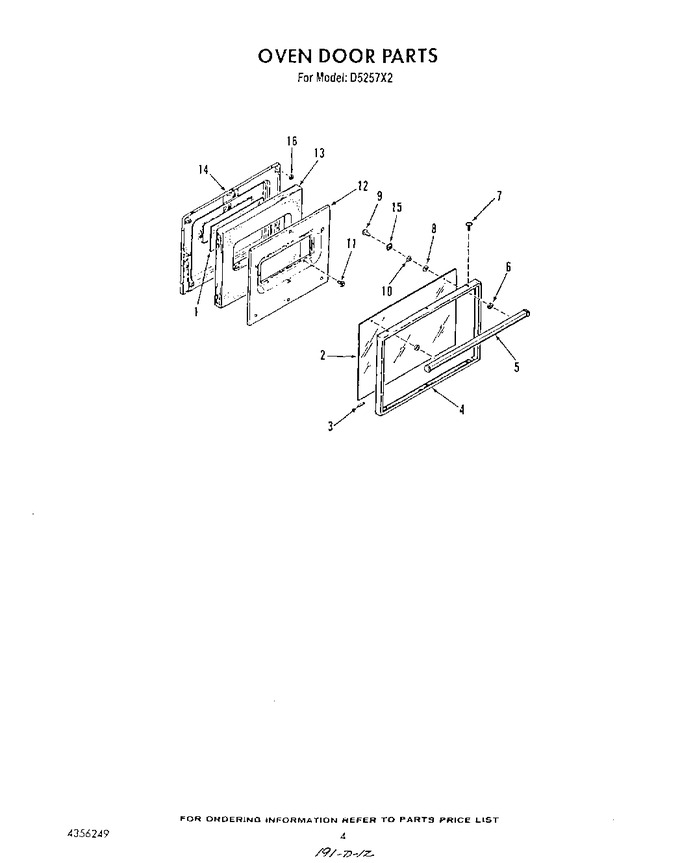

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4334792		Glass, Inner		Appelez-nous	-
2	4336721		Glass, Outer		Appelez-nous	-
3	4324217		Cushion		Appelez-nous	-
4	4336720		Frame		Appelez-nous	-
5	4336828		Handle		Appelez-nous	-
6	4323997		Spacer, Handle		Appelez-nous	-
7	4332521		Screw No.10-32x1/2		Appelez-nous	-
8	4336868		Washer, Fibre		Appelez-nous	-
9	4342665		Screw, No.10-32 X 3/4		Appelez-nous	-
10	4336869		Spacer, Glass		Appelez-nous	-
11	4323884		Screw, No.10-32x17/32``		Appelez-nous	-
12	4335755		Retainer		Appelez-nous	-
13	4354748		Insulation		Appelez-nous	-
14	4336593		Liner, Inner Door		Appelez-nous	-
15	4342666		Retainer		Appelez-nous	-
16	4337618		Washer, Felt		Appelez-nous	-
