SELECT A DIAGRAM

02 - Control Panel


03 - Oven


04 - Oven Door


05 - Cook Top


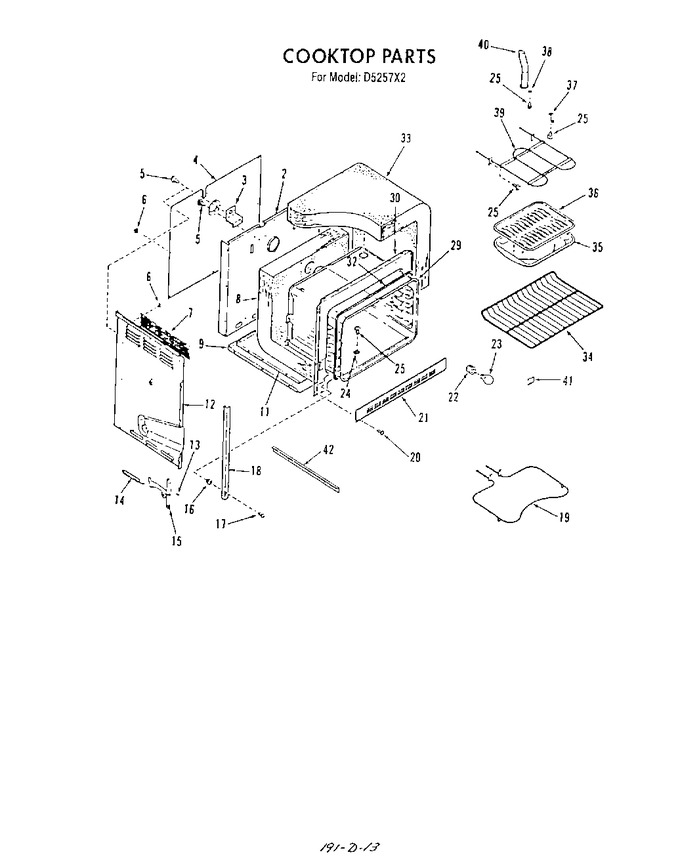

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343191		Back, Main		Appelez-nous	-
3	4331500		Mounting Bracket Conduit		Appelez-nous	-
4	4343192		Wire Cover		Appelez-nous	-
5	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4343109)				$ 7.38
6	4323413		Clip		Appelez-nous	-
7	4336923		Screen, Burner Box		Appelez-nous	-
8	4354753		Insulation, Back And Bottom		Appelez-nous	-
9	4336438		Bottom, Main		Appelez-nous	-
11	4336427		Retainer, Bottom Insulation		Appelez-nous	-
12	4343031		Retainer, Insulation (right Side)		Appelez-nous	-
12	4343032		Retainer, Insulation (left Side)		Appelez-nous	-
13	4336631		Screw		Appelez-nous	-
14	4343197		Spring, Oven Door		Appelez-nous	-
15	4337545		Hinge, Oven Door (right)		Appelez-nous	-
15	4337546		Hinge, Oven Door (left)		Appelez-nous	-
16	4336445		Spacer, Expansion		Appelez-nous	-
17	W11693756		Screw, No.8 X 3/4   (Replaces: 4325886)			Immediately	$ 13.28
18	4336443		Side Trim (left)		Appelez-nous	-
18	4336444		Side Trim (right)		Appelez-nous	-
19	4337606		Bake Element (208 Volt (opt))		Appelez-nous	-
19	4337605		Bake Element (240 Volt)		Appelez-nous	-
20	4332521		Screw No.10-32x1/2		Appelez-nous	-
21	4343193		Trim, Bottom		Appelez-nous	-
22	W10856866		Socket, Oven Light   (Replaces: 4343038)				$ 6.80
23	8009		Bulb, Oven Light   (Replaces: 4338591)			Immediately	$ 16.80
24	4323206		Washer		Appelez-nous	-
25	4323776		Screw, No.10-32 X 17/32		Appelez-nous	-
29	4337959		Oven Cavity		Appelez-nous	-
30	4336846		Frame, Front		Appelez-nous	-
32	4331799		Seal, Oven Door		Appelez-nous	-
33	4354750		Insulation, Wrap		Appelez-nous	-
34	4354754		Rack, Oven (2)		Appelez-nous	-
35	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
36	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
37	4337249		Support, Broil Element		Appelez-nous	-
38	4337453		Washer		Appelez-nous	-
39	4343194		Broil Element (240 Volt)		Appelez-nous	-
39	4343195		Broil Element (208 Volt (opt))		Appelez-nous	-
40	4343196		Vent Tube		Appelez-nous	-
41	4338588		Plug, Button		Appelez-nous	-
42	4332532		Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
