SELECT A DIAGRAM

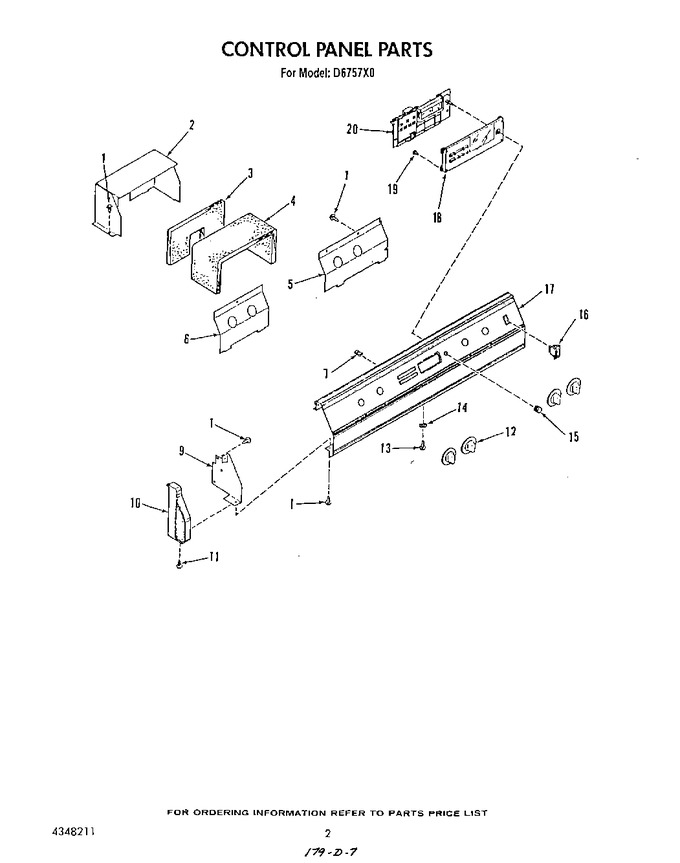

02 - Control Panel


03 - Cook Top


04 - Burner


05 - Oven


06 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
2	4338383		Cover, Controls		Appelez-nous	-
3	4354282		Insulation-cover		Appelez-nous	-
4	4354283		Insulation-sides		Appelez-nous	-
5	4332059		Cover, Right		Appelez-nous	-
6	4332060		Cover-left		Appelez-nous	-
7	4324015		Nut, Speed No.10-32		Appelez-nous	-
9	4332175		Bracket-end Cap (right)		Appelez-nous	-
9	4332176		Bracket-end Cap (left)		Appelez-nous	-
10	4336417		End Cap (left)		Appelez-nous	-
10	4336416		End Cap (right)		Appelez-nous	-
11	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
12	4342654		Knob-control (4)		Appelez-nous	-
13	4323776		Screw, No.10-32 X 17/32		Appelez-nous	-
14	4323979		Washer		Appelez-nous	-
15	4338513		Knob, Clock		Appelez-nous	-
16	WP4314961		Switch   (Replaces: 4337275)				$ 84.56
17	4337805		Panel, Control		Appelez-nous	-
18	4337553		Lens, Clock		Appelez-nous	-
19	4323476		Screw		Appelez-nous	-
20	4337979		Control-clock/oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
