SELECT A DIAGRAM

02 - Control Panel


03 - Cook Top

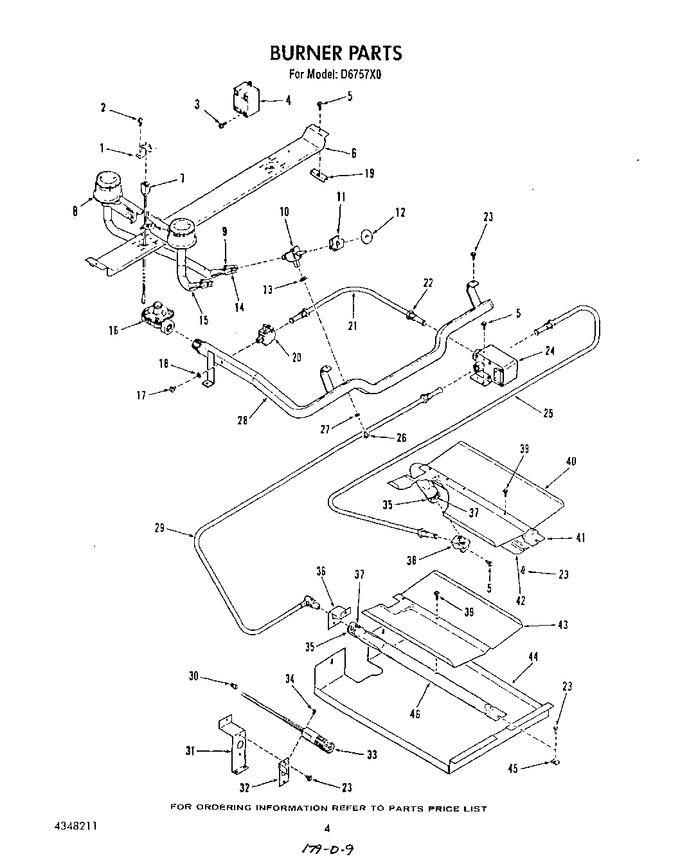

04 - Burner


05 - Oven


06 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4331307		Bracket-ignitor (lt Or Rt)		Appelez-nous	-
2	W10850756		Screw No.10-32x7/16   (Replaces: 4332396)				$ 7.38
3	4323949		Screw No.6-32x3/8		Appelez-nous	-
4	4333260		Module-spark		Appelez-nous	-
5	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
6	4332719		Support-top Burner		Appelez-nous	-
7	4331309		Electrode-igniter (left)		Appelez-nous	-
7	4331376		Electrode-igniter (right)		Appelez-nous	-
8	4332713		Burner, Rear Top (lt Or Rt)		Appelez-nous	-
9	4328513		Screw-adjustment, (air Shutter)		Appelez-nous	-
10	4336713		Valve, Gas (4)		Appelez-nous	-
11	4330739		Switch, Gas Valve (4)				$ 57.26
12	4329601		Shield-gas Valve (4)		Appelez-nous	-
13	4331665		Seal, Valve-1 Ea. Illus. 10 & 20		Appelez-nous	-
14	4328512		Shutter, Air		Appelez-nous	-
15	4332712		Burner, Top Front		Appelez-nous	-
16	4334271		Regulator-pressure		Appelez-nous	-
17	4331097		Screw		Appelez-nous	-
18	4331164		Seal		Appelez-nous	-
19	4336938		Spacer, Support		Appelez-nous	-
20	4335080		Valve, Shut Off		Appelez-nous	-
21	4342732		Tubing 3/8`` (shut-off Valve To Control Valve		Appelez-nous	-
22	4324278		Nut, Inverted 3/8		Appelez-nous	-
23	4323776		Screw, No.10-32 X 17/32		Appelez-nous	-
24	4338490		Valve, Control		Appelez-nous	-
25	4342731		Tubing 3/8`` (valve To Broiler Burner)		Appelez-nous	-
26	4331097		Screw, Mounting-1 Each-illus. 10 & 20		Appelez-nous	-
27	4331164		Seal (for No.26)		Appelez-nous	-
28	4333853		Manifold Pipe		Appelez-nous	-
29	4338025		Tubing 3/8`` W/orifice Valve/oven Burner		Appelez-nous	-
30	WP4323866		Wire Connector (4)   (Replaces: 4323866)				$ 10.48
31	4332069		Bracket, Mounting		Appelez-nous	-
32	4331163		Bracket, Igniter		Appelez-nous	-
33	4342528		Ignitor-bake/broil   (Replaces: 4338008)			Immediately	$ 98.63
34	4323953		Screw No.10-32x1/4		Appelez-nous	-
35	4331501		Shutter, Air		Appelez-nous	-
36	4337445		Bracket-orifice Fitting/ov. Burner		Appelez-nous	-
37	4331502		Screw, Adjustment-air Shutter		Appelez-nous	-
38	4336710		Fitting-orifice/-broiler Burner		Appelez-nous	-
39	WP489128		Screw No.8-32x3/8   (Replaces: 4323625)				$ 10.26
40	4334487		Baffle-upper/broil Burner		Appelez-nous	-
41	4332738		Burner, Broil (inc`s No.40 & No.42)		Appelez-nous	-
42	4328733		Baffle/lower-broil		Appelez-nous	-
43	4332392		Baffle-oven Burner		Appelez-nous	-
44	4334487		Baffle-oven Burner		Appelez-nous	-
45	4324015		Nut, Speed No.10-32		Appelez-nous	-
46	4332515		Burner, Oven W/baffle		Appelez-nous	-
