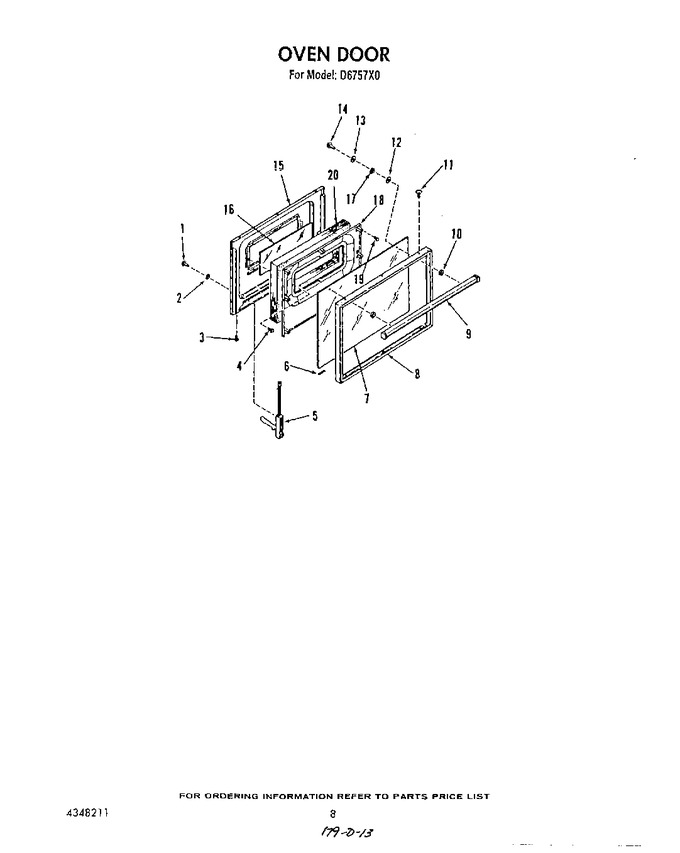

06 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4326322		Screw, No.10-32 X 5/16		Appelez-nous	-
2	4323979		Washer		Appelez-nous	-
3	4325101		Screw No.10-32x3/8		Appelez-nous	-
4	4323884		Screw, No.10-32x17/32``		Appelez-nous	-
5	4334321		Hinge-oven Door		Appelez-nous	-
6	4324217		Cushion		Appelez-nous	-
7	4337860		Glass-outer Door		Appelez-nous	-
8	4337859		Frame, Oven Door		Appelez-nous	-
9	4336828		Handle, Door		Appelez-nous	-
10	4323997		Spacer, Dr. Handle		Appelez-nous	-
11	4336631		Screw		Appelez-nous	-
12	4336868		Washer, Fiber		Appelez-nous	-
13	4323694		Washer		Appelez-nous	-
14	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
15	4332055		Lining-oven Door		Appelez-nous	-
16	4327671		Glass, Inner Door		Appelez-nous	-
17	4336869		Spacer, Glass Door		Appelez-nous	-
18	4333361		Retainer-insul.		Appelez-nous	-
19	4325611		Rivet		Appelez-nous	-
20	4333057		Switches		Appelez-nous	-
20	4328500		Insulation		Appelez-nous	-
20	4337735		Sensor		Appelez-nous	-
20	4337858		Main		Appelez-nous	-
