01 - Cover Sheet

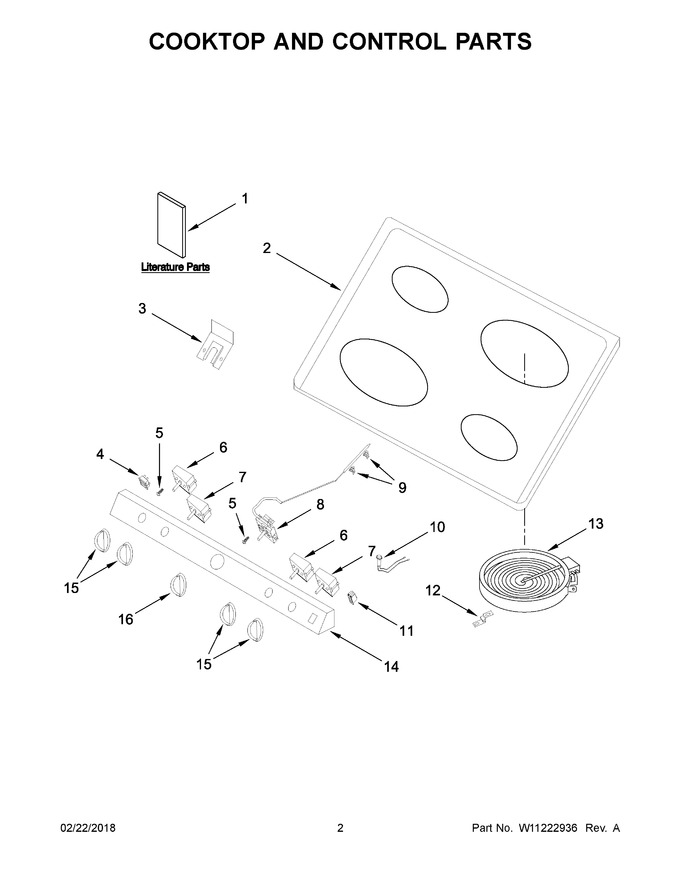

02 - Cooktop And Control Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Front Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11169654 | Use And Care Guide |
|
- | |||||
| 2 | W11223955 | Cooktop (black) (Replaces: W11222946) |
|
$ 849.95 | |||||
| 3 | W11223004 | Bracket, Anti-tip |
|
Immediately | $ 110.39 | ||||
| 4 | W11223400 | Indicator, Surface And Oven |
|
Immediately | $ 104.59 | ||||
| 5 | W10197682 | Screw |
|
- | |||||
| 6 | W10197679 | Switch, Infinite (2000w) |
|
Immediately | $ 177.29 | ||||
| 7 | WPW10197681 | Switch, Infinite (1200w) (Replaces: W10197681) |
|
Immediately | $ 150.89 | ||||
| 8 | W11224303 | Thermostat, Oven (Replaces: W11223396) |
|
Immediately | $ 346.06 | ||||
| 9 | W11223836 | Clip, Thermostat Bulb |
|
$ 10.55 | |||||
| 10 | W11223435 | Indicator, Hot Surface |
|
Immediately | $ 108.13 | ||||
| 11 | W11223432 | Switch, Oven Light |
|
$ 205.71 | |||||
| 12 | W11223966 | Spring, Element (Replaces: W11223394) |
|
- | |||||
| 13 | W11223964 | Element (2000w) (left Front, Right Rear) (Replaces: W11223381) |
|
Immediately | $ 358.26 | ||||
| 14 | W11223956 | Panel, Control (Replaces: W11222947) |
|
Immediately | $ 350.64 | ||||
| 15 | W11223402 | Knob, Burner |
|
Immediately | $ 77.79 | ||||
| 16 | W11223404 | Knob, Oven Thermostat |
|
$ 77.79 | |||||
| 13A | W11223965 | Element (1200w) (left Rear, Right Front) (Replaces: W11223389) |
|
$ 307.37 | |||||
| NI | W11223832 | Harness, Wire |
|
Immediately | $ 353.17 | ||||
| NI | W11223834 | Wire, Jumper |
|
Immediately | $ 106.78 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
