01 - Cover Sheet
02 - Cooktop And Control Parts

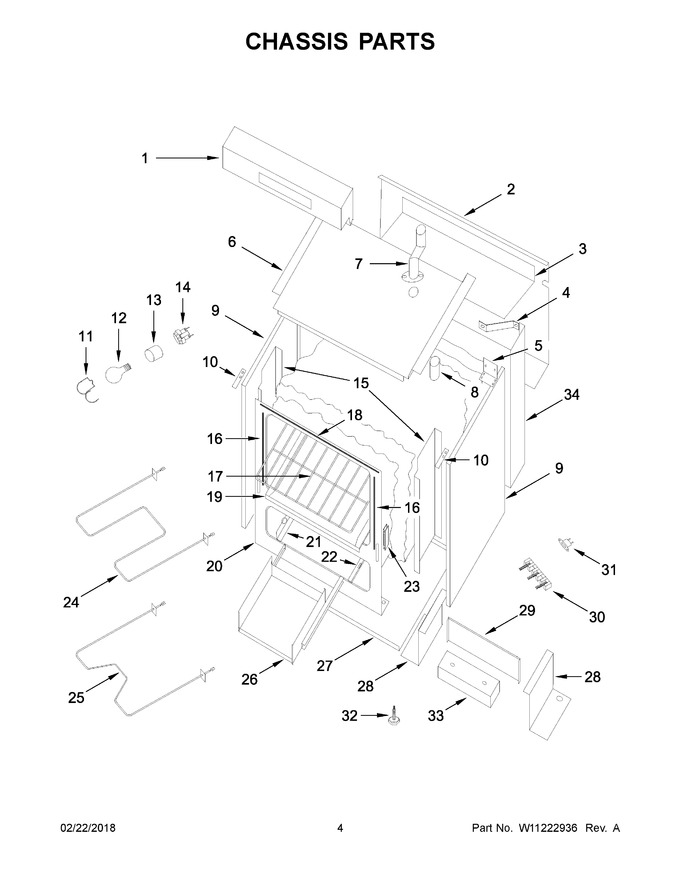

03 - Chassis Parts
04 - Door Parts
05 - Drawer Front Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222948 | Backguard, Vented |
|
$ 489.36 | |||||
| 2 | W11223003 | Cover, Rear |
|
$ 147.34 | |||||
| 3 | W11223018 | Deflector, Moisture |
|
- | |||||
| 4 | W11223015 | Brace, Back |
|
- | |||||
| 5 | W11222997 | Retainer, Rear Top |
|
- | |||||
| 6 | W11222952 | Bottom, Burner Box |
|
- | |||||
| 7 | W11223960 | Vent Tube, Upper (Replaces: W11222980) |
|
$ 101.88 | |||||
| 8 | W11223959 | Vent Tube, Lower Oven (Replaces: W11222976) |
|
- | |||||
| 9 | W11222958 | Panel, Side (black) |
|
$ 363.55 | |||||
| 10 | W11222951 | Retainer, Front Top |
|
- | |||||
| 11 | W11223426 | Guard, Oven Light |
|
- | |||||
| 12 | 8009 | Bulb, Light (Replaces: 4364092) |
|
Immediately | $ 17.51 | ||||
| 13 | W11223424 | Socket, Bulb |
|
- | |||||
| 14 | 4364091 | Receptacle, Light |
|
- | |||||
| 15 | W11222969 | Baffle, Inner Side |
|
- | |||||
| 16 | W11223961 | Gasket, Oven Side (Replaces: W11222989) |
|
$ 178.11 | |||||
| 17 | W11222957 | Rack, Oven |
|
- | |||||
| 18 | W11222984 | Gasket, Oven Top |
|
Immediately | $ 178.79 | ||||
| 19 | W11223962 | Bottom, Oven (Replaces: W11222991) |
|
$ 201.95 | |||||
| 20 | W11222993 | Frame, Front |
|
Immediately | $ 356.57 | ||||
| 21 | 4364363 | Runner, Drawer (left) |
|
$ 45.32 | |||||
| 22 | 4364364 | Runner, Drawer (right) |
|
$ 45.32 | |||||
| 23 | W11223957 | Receiver, Hinge (Replaces: W11222949) |
|
$ 70.33 | |||||
| 24 | W11223408 | Element, Broil |
|
Immediately | $ 282.17 | ||||
| 25 | W11224304 | Element, Bake (Replaces: W11223410) |
|
$ 267.64 | |||||
| 26 | W11222999 | Body, Storage Drawer |
|
$ 309.81 | |||||
| 27 | W11222953 | Bottom, Main |
|
$ 200.57 | |||||
| 28 | W11222995 | Support, Rear Side |
|
$ 75.93 | |||||
| 29 | W11222996 | Cross Brace, Rear |
|
- | |||||
| 30 | WPW10245259 | Block, Terminal (Replaces: 4364187) |
|
Immediately | $ 31.65 | ||||
| 31 | 4364176 | Switch, Limit |
|
$ 198.31 | |||||
| 32 | W11673271 | Leg, Leveler (Replaces: 4364080) |
|
$ 28.46 | |||||
| 33 | W11223037 | Counterweight |
|
- | |||||
| 34 | W11222960 | Back, Main |
|
- | |||||
| NI | W11688809 | Insulation, Wrap (Replaces: W11222964) |
|
- | |||||
| NI | W11223376 | Retainer, Insulation |
|
- | |||||
| NI | W11223958 | Insulation, Back Or Bottom (Replaces: W11222962) |
|
- |
