Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11223440 Liner, Door Special Order $ 362.17

2 W11688576 Insulation, Door   (Replaces: W11223441) Appelez-nous -
3 W11223444 Retainer, Door Insulation Special Order $ 273.69

4 W11224305 Glass, Door   (Replaces: W11223445) In-Stock Immediately $ 168.59

5 W11223460 Retainer, Glass Appelez-nous -
6 W11223466 Spacer Special Order $ 16.88

7 W11223451 Panel, Inner Door Special Order $ 286.59

8 W11662210 Panel, Outer Door   (Replaces: W11223453) Special Order $ 667.77

9 W11224306 Handle, Door   (Replaces: W11223454) Special Order $ 370.41

10 W11223469 Clip, Glass Retainer Appelez-nous -
11 W11223467 Spacer, Flat Special Order $ 17.44

12 W11223459 Hinge, Oven Door Special Order $ 142.39


    View Diagram in Separate Window     Print Icon   Print Part List

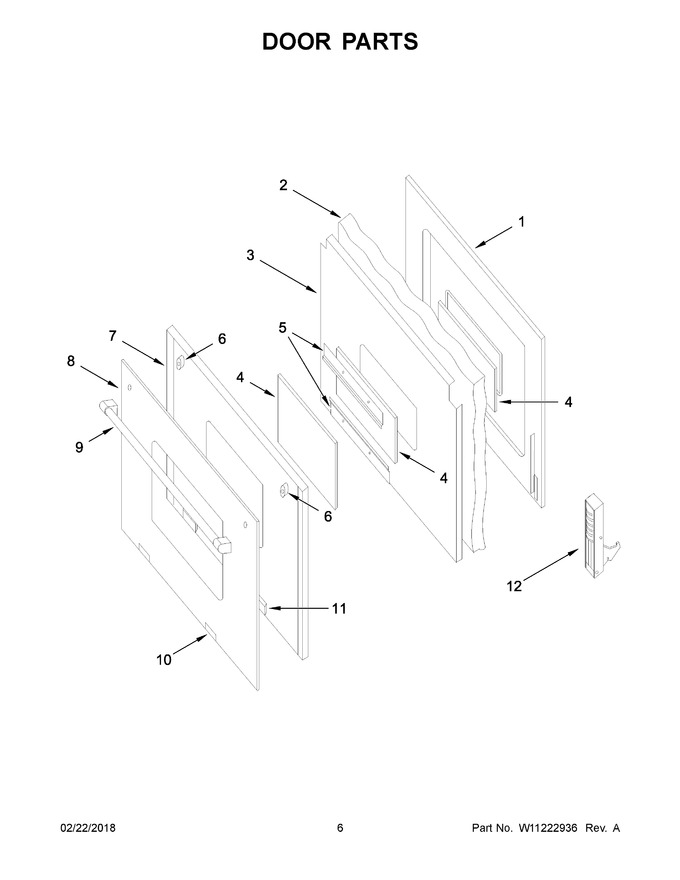

Diagram for WFE500M4HS0
