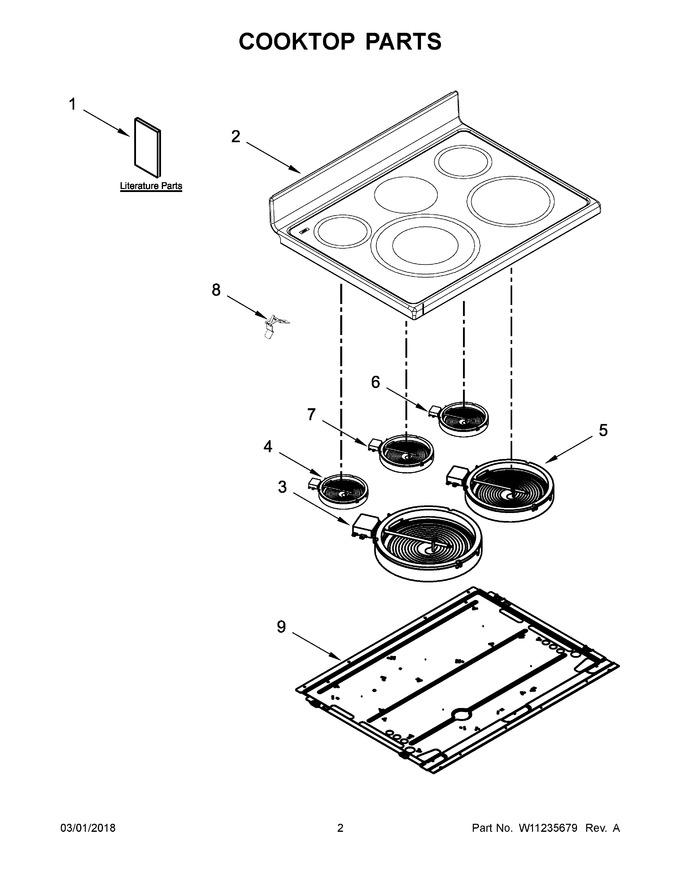

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10575959 | Instructions, Installation |
|
- | |||||
| 2 | W10877558 | Cooktop (black) (Replaces: W10828383) |
|
$ 604.31 | |||||
| 3 | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 4 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 5 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 126.62 | |||||
| 8 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 9 | WPW10260946 | Panel, Element Support (Replaces: W10260946) |
|
$ 128.67 | |||||
| 1A | W10841341 | Guide, Use & Care |
|
- | |||||
| 1B | W10647745 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10843093 | Diagram, Wiring |
|
- | |||||
| 2A | W10877560 | Cooktop (white) (Replaces: W10828384) |
|
$ 594.45 | |||||
| NI | W11134679 | Harness, Main |
|
$ 233.99 | |||||
| NI | W11217844 | Harness, Infinite Switch (left) |
|
$ 192.77 | |||||
| NI | W11172427 | Harness, Infinite Switch (right) |
|
$ 183.89 | |||||
| NI | W11172428 | Harness, Eol (dofsr) |
|
- | |||||
| NI | W11190451 | Harness, Cooktop |
|
$ 223.20 | |||||
| NI | W11172531 | Harness, Sensor & Locks |
|
$ 113.52 | |||||
| NI | WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 4.77 | |||||
| NI | WPW10281322 | Block, Bare Wire Adapter (Replaces: 7401P157-60) |
|
$ 8.45 | |||||
| NI | 8019P013-60 | Clip, Wire Lock |
|
$ 14.95 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
