Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 88.42

2 WP3196068 Lens, Indicator   (Replaces: 3196068) In-Stock Immediately $ 6.26

3 WPW10318551 Console (black)   (Replaces: W10318551) Special Order $ 259.44

4 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.19

5 W10877730 Control, Electronic   (Replaces: W10828145) Special Order $ 503.85

6 WP74004153 Light, Indicator   (Replaces: 7407P136-60) In-Stock Immediately $ 8.91

7 W11517335 Knob (chrome)   (Replaces: W10850040) Special Order $ 20.51

8 W10278697 Shield, Vent In-Stock Immediately $ 174.60

9 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 92.00

10 W11129442 Switch, Infinite (left Front)   (Replaces: W10437097) In-Stock Immediately $ 100.57

11 W10877766 Assembly, Membrane (including Bracket) (black)   (Replaces: W10826679) Appelez-nous -
12 W10674068 Screw Special Order $ 23.23

13 W10776098 Cover, Backguard Special Order $ 129.34

14 W10850042 Bezel (stainless) In-Stock Immediately $ 62.14

15 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 6.95

10A W10917724 Switch, Infinite (left Rear)   (Replaces: W10437094) In-Stock Immediately $ 129.35

10B WPW10312185 Switch, Infinite (right Front)   (Replaces: W10312185) In-Stock Immediately $ 147.15

10C WP7403P238-60 Switch, Infinite (right Rear)   (Replaces: 7403P373-60) In-Stock Immediately $ 64.20

11A W10877767 Assembly, Membrane (including Bracket) (white)   (Replaces: W10826680) Special Order $ 337.19

11B W10877769 Assembly, Membrane (including Bracket) (stainless)   (Replaces: W10840439) Special Order $ 327.71

1A W10319110 Support, Backguard (white (left)) Special Order $ 91.38

1B W10319111 Support, Backguard (black (right)) Special Order $ 43.80

1C W10319112 Support, Backguard (white (right)) Special Order $ 89.32

3A WPW10318552 Console (white)   (Replaces: W10318552) In-Stock Immediately $ 269.02

3B WPW10318550 Console (stainless)   (Replaces: W10318550) Special Order $ 260.22

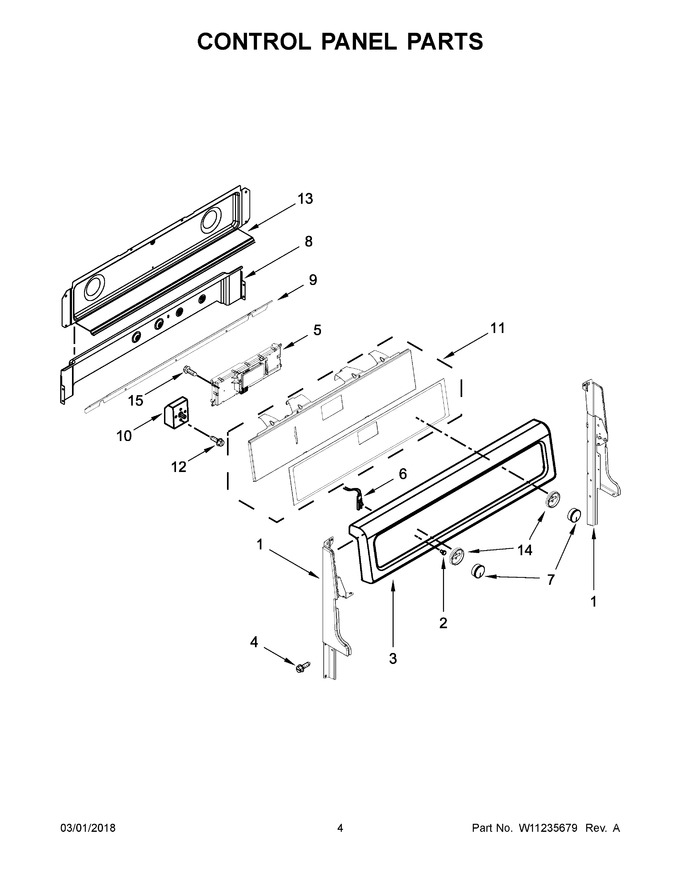

    View Diagram in Separate Window     Print Icon   Print Part List
