SELECT A DIAGRAM
New Model Search:

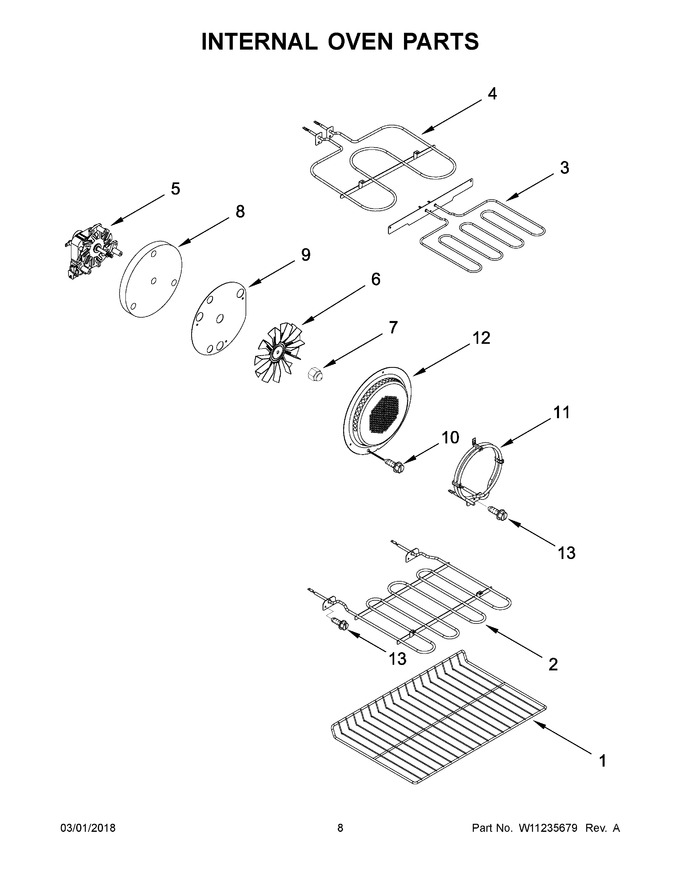

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10179152 | Rack, Oven (Replaces: W10179152) |
|
Immediately | $ 119.61 | ||||
| 2 | WPW10611615 | Element, Broil (lower) (Replaces: W10611615) |
|
Immediately | $ 195.20 | ||||
| 3 | W11662148 | Element, Bake (upper & Lower) (Replaces: W10249981) |
|
Immediately | $ 117.13 | ||||
| 4 | W11716849 | Element, Broil (upper) (Replaces: W10249977) |
|
$ 107.71 | |||||
| 5 | W11235883 | Motor, Convection (Replaces: W11190725) |
|
$ 222.15 | |||||
| 6 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 84.45 | ||||
| 7 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 12.51 | |||||
| 8 | W10274268 | Insulation, Convection Motor |
|
$ 78.74 | |||||
| 9 | W10339476 | Plate, Insulation |
|
$ 76.86 | |||||
| 10 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.41 | |||||
| 11 | W10271639 | Element, Convection (240vac) |
|
$ 282.70 | |||||
| 12 | WPW10160821 | Cover, Fan (Replaces: 4448988) |
|
$ 271.99 | |||||
| 13 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 |
