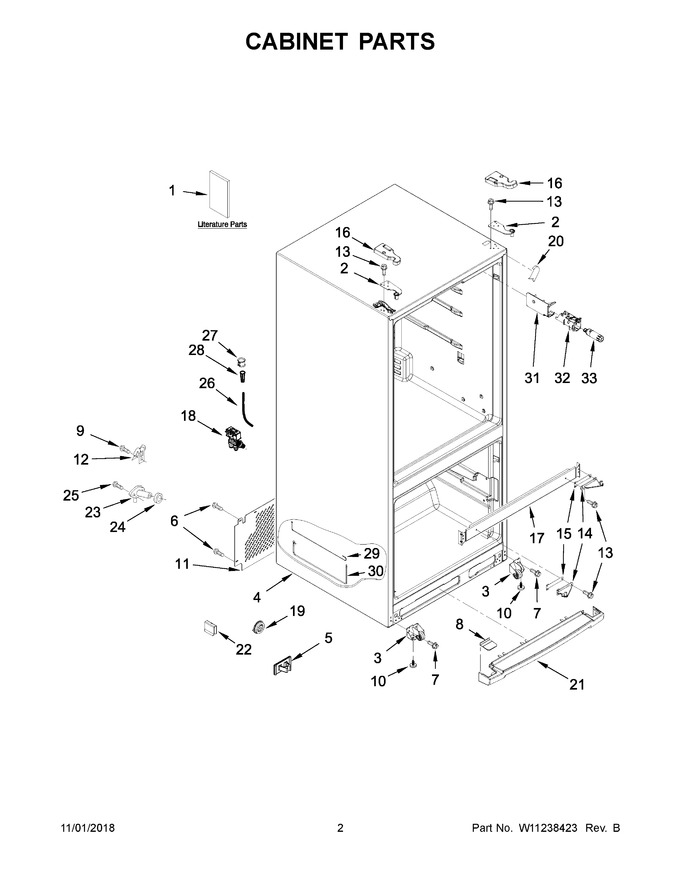

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10641015		Tech Sheet		Appelez-nous	-
2	W10546298		Hinge, Top (left Hand)				$ 70.15
3	WPW10359256		Roller, Front (left Hand)   (Replaces: W10359256)			Immediately	$ 51.83
4	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
5	W11501419		Clip, Tube   (Replaces: W10352217)			Immediately	$ 12.10
6	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
8	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
10	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
11	W10636716		Cover, Unit				$ 105.27
12	549193		Clamp, Power Cord				$ 14.06
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
14	W10770878		Hinge, Center (left Hand)			Immediately	$ 82.30
15	WPW10450363		Shim, Center Hinge   (Replaces: W10450363)			Immediately	$ 25.34
16	W10465765		Cover, Hinge (left Hand (white))				$ 20.57
17	N/P		Rail, Center (not Serviced)		Appelez-nous	-
18	WPW10279909		Valve, Inlet   (Replaces: W10498995)				$ 189.89
19	W10331226		Drum, Toe Grille				$ 47.42
20	W11219639		Corner Filler (white)   (Replaces: W11189128)				$ 11.88
21	WPW10300127		Grille (white)   (Replaces: W10300127)				$ 161.49
22	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 11.53
23	WPW10601149		Fitting, Water Tube   (Replaces: W10601149)			Immediately	$ 8.56
24	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
25	WP489478		Screw   (Replaces: W10001260)				$ 8.18
26	WPW10496649		Tube, Water   (Replaces: W10496649)				$ 123.33
27	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 65.90
28	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
29	W10449880		Tube, Filter Inlet			Immediately	$ 134.21
30	WPW10449611		Tube, Filter Outlet   (Replaces: W10449611)				$ 120.99
31	WPW10306392		Cover, Water Filter   (Replaces: W10306392)				$ 106.06
32	W10844267		Housing, Water Filter   (Replaces: W10817430)			Immediately	$ 142.29
33	EDR1RXD1B		Filter, Water   (Replaces: W10735398)			Immediately	$ 49.99
14A	W11417064		Hinge, Center (right Hand)   (Replaces: W10770877)			Immediately	$ 60.73
16A	W10465764		Cover, Hinge (right Hand (white))				$ 21.51
16B	W10465771		Cover, Hinge (left Hand (black))				$ 19.76
16C	W10465770		Cover, Hinge (right Hand (black))				$ 22.77
16D	W10465768		Cover, Hinge (left Hand (grey))				$ 20.53
16E	W10465767		Cover, Hinge (right Hand (grey))			Immediately	$ 21.46
1A	W11112396		Energy Guide		Appelez-nous	-
1B	W10360467		Use And Care Guide		Appelez-nous	-
1C	2225623		Icemaker Service Sheet		Appelez-nous	-
20A	W11219641		Corner Filler (black)   (Replaces: W11189127)				$ 11.88
20B	W11219642		Corner Filler (grey)   (Replaces: W11042197)			Immediately	$ 12.85
21A	WPW10353933		Grille (black)   (Replaces: W10353933)				$ 162.80
21B	WPW10353935		Grille (grey)   (Replaces: W10353935)			Immediately	$ 103.32
2A	W11573371		Hinge, Top (right Hand)   (Replaces: W10546299)			Immediately	$ 24.87
3A	WPW10359255		Roller, Front (right Hand)   (Replaces: W10359255)			Immediately	$ 100.64
8A	W10353930		Cover, Toe Grille (black)				$ 85.34
8B	WPW10353932		Cover, Toe Grille (grey)   (Replaces: W10353932)				$ 85.50
