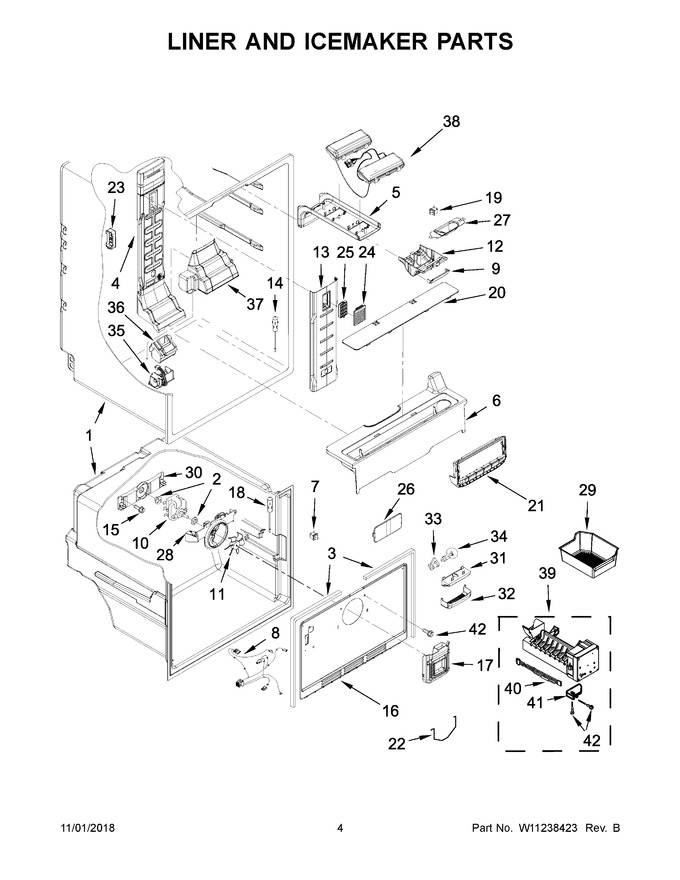

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 95.69 | ||||
| 4 | W11508229 | Assembly, Multiflow (Replaces: W10448448) |
|
$ 70.20 | |||||
| 5 | W10469878 | Housing, Light |
|
Immediately | $ 122.03 | ||||
| 6 | W10798439 | Container, Water Reservoir |
|
$ 179.92 | |||||
| 7 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 8 | WPW10487766 | Assembly, Freezer Wire (Replaces: W10487766) |
|
Immediately | $ 78.12 | ||||
| 9 | W10360550 | Cover, Control Housing |
|
$ 76.27 | |||||
| 10 | W11818487 | Motor, Fan (Replaces: W10464673) |
|
$ 119.39 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | WPW10435577 | Housing, Control (Replaces: W10435577) |
|
Immediately | $ 97.29 | ||||
| 13 | WPW10356895 | Tower, Multiflow Air (Replaces: W10356895) |
|
$ 161.49 | |||||
| 14 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 16 | W10300900 | Cover, Evaporator |
|
$ 242.16 | |||||
| 17 | W11227949 | Tower, Freezer (Replaces: W10317182) |
|
$ 107.22 | |||||
| 18 | WPW10383615 | Thermistor, Evaporator (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | W10413160 | Cover, Water Reservoir |
|
$ 113.14 | |||||
| 21 | W11082837 | Ui Assembly (Replaces: W11027234) |
|
$ 436.23 | |||||
| 22 | WPW10474785 | Arm, Shut Off (Replaces: W10474785) |
|
Immediately | $ 58.29 | ||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 24 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 37.56 | |||||
| 25 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 26 | W10336009 | Cup, Screw |
|
$ 77.40 | |||||
| 27 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 29 | WPW10378263 | Pan, Ice (Replaces: W10378263) |
|
$ 55.56 | |||||
| 30 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 31 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 32 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 33 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 34 | W10914194 | Bulb, Light (Replaces: W10809513) |
|
Immediately | $ 8.40 | ||||
| 35 | W11808478 | Damper, Electronic Control (Replaces: W10745484) |
|
Immediately | $ 139.31 | ||||
| 36 | W11133099 | Cover, Damper Housing (Replaces: W10474774) |
|
Immediately | $ 106.42 | ||||
| 37 | WPW10314204 | Housing, Damper (Replaces: W10314204) |
|
$ 102.06 | |||||
| 38 | W10889448 | Assembly, Led Light (Replaces: W10536361) |
|
$ 145.41 | |||||
| 39 | 4317943 | Assembly, Icemaker (Replaces: W10632400) |
|
Immediately | $ 183.45 | ||||
| 40 | W11643622 | Assembly, Ice Maker Wire (Replaces: W10309400) |
|
$ 28.48 | |||||
| 41 | W11500948 | Bracket, Icemaker Mounting (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 42 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 |
