View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

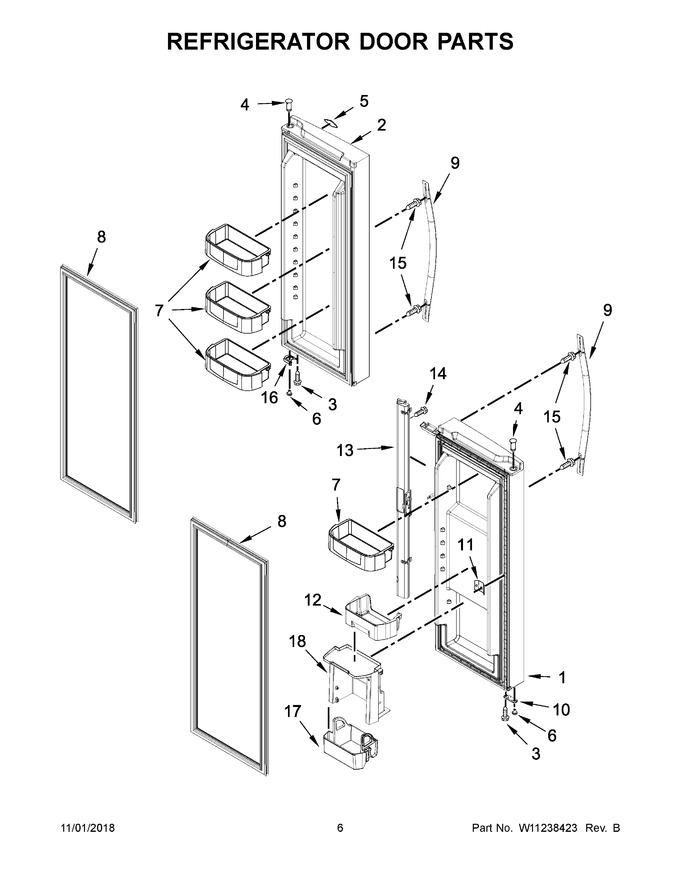

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner And Icemaker Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10721544 | Door, Left (includes #8) (white) (Replaces: W10721544) |
|
$ 1,021.89 | |||||
| 2 | LW10721540 | Door, Right (includes #8) (white) (Replaces: W10721540) |
|
$ 1,017.04 | |||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | Thimble (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 8 | W10460612 | Gasket (beige) (Replaces: W10353189) |
|
Immediately | $ 232.69 | ||||
| 9 | W11127179 | Handle Assembly (white) (Replaces: W11101973) |
|
Immediately | $ 190.44 | ||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 11 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 58.46 | ||||
| 13 | WPW10624451 | Flipper Mullion Assembly (white) (Replaces: W10624451) |
|
Immediately | $ 128.93 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 15 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 36.94 | ||||
| 17 | W11106787 | Caddy, Condiment (Replaces: W10462299) |
|
Immediately | $ 106.98 | ||||
| 18 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 103.80 | |||||
| 13A | W11692845 | Flipper Mullion Assembly (black) (Replaces: W10624448) |
|
$ 241.66 | |||||
| 13B | WPW10624450 | Flipper Mullion Assembly (grey) (Replaces: W10624450) |
|
Immediately | $ 223.83 | ||||
| 1A | LW10721546 | Door, Left (includes #8) (black) (Replaces: W10721546) |
|
$ 874.89 | |||||
| 1B | LW10865734 | Door, Left (includes #8) (black Stainless) (Replaces: W10865734) |
|
$ 1,127.16 | |||||
| 1C | W11040556 | Door, Left (includes #8) (stainless) |
|
- | |||||
| 2A | LW10721541 | Door, Right (includes #8) (black) (Replaces: W10721541) |
|
$ 874.89 | |||||
| 2B | LW10865738 | Door, Right (includes #8) (black Stainless) (Replaces: W10865738) |
|
Immediately | $ 1,125.33 | ||||
| 2C | W11040553 | Door, Right (includes #8) (stainless) |
|
- | |||||
| 8A | W10460610 | Gasket (black) (Replaces: W10413465) |
|
$ 225.77 | |||||
| 8B | WPW10460580 | Gasket (grey) (Replaces: W10413468) |
|
Immediately | $ 221.51 | ||||
| 9A | W11123097 | Handle Assembly (black) (Replaces: W11101974) |
|
$ 190.44 | |||||
| 9B | W11125624 | Handle Assembly (black Stainless) (Replaces: W11101972) |
|
$ 190.44 | |||||
| 9C | W11123099 | Handle Assembly (stainless) (Replaces: W11101971) |
|
Immediately | $ 156.01 |
