Case Parts


Freezer Door


Freezer Section


Freezer Shelves


Fresh Food Door


Fresh Food Section


Fresh Food Shelves


Ice Maker & Dispenser


Machine Compartment


Quick Chill

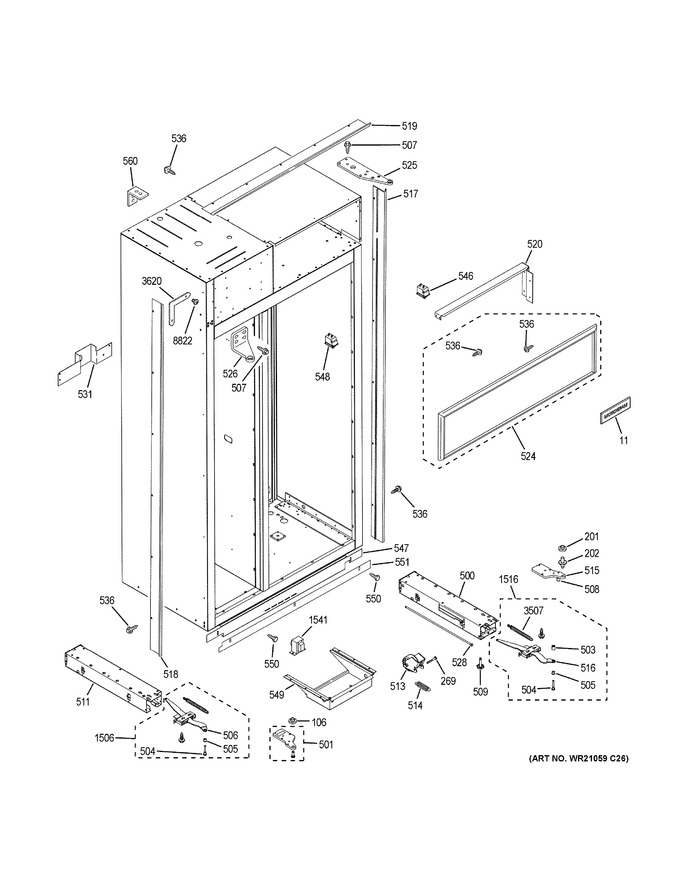

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR02X27841		Monogram Badge Intl		Appelez-nous	-
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
201	WG03A00011		Bushing Hinge Bottom   (Replaces: WR02X10953)				$ 73.58
202	WR01A01444		Lower Ff Adj Hinge Pin   (Replaces: WR13X10239)				$ 21.63
269	WR01X10809		Key Pivot		Appelez-nous	-
500	WR13X10965		Base Channel Rh		Appelez-nous	-
501	WR13X23603		Hinge Case Bottom Fz		Appelez-nous	-
503	WR01L08607		Spacer Ff Door Closure   (Replaces: WR02X11231)				$ 21.71
504	WR02X11207		Bolt Shoulder		Appelez-nous	-
505	WR02X10951		Bhng Arm Nylon Ff Dr Cl		Appelez-nous	-
506	WR02X13151		Actuator Arm		Appelez-nous	-
507	WR01X10177		Hinge Screw Door Btm		Appelez-nous	-
508	WR02X11209		Shear Pin		Appelez-nous	-
509	WR02X10479		Leveling Leg		Appelez-nous	-
511	WR13X10966		Base Channel Lh		Appelez-nous	-
513	WR2X8377		Wheel Asm.		Appelez-nous	-
514	WG03A00253		Spring Wheel #le022c4   (Replaces: WR02X11233)				$ 15.88
515	WR13X23372		Hinge Case Bottom		Appelez-nous	-
516	WR02X13152		Actuator Arm		Appelez-nous	-
517	WR17X25863		Trim Case Side Ff Cafe Profile		Appelez-nous	-
518	WR17X25862		Trim Case Side Fz Cafe/profile		Appelez-nous	-
519	WR17X25896		Trim Case Top Sxs 48		Appelez-nous	-
520	WR13X11004		Mount Hood Grill Hinge		Appelez-nous	-
524	WR74X27896		Grill Asm China		Appelez-nous	-
525	WR13X23350		Hinge Case Ff Upper		Appelez-nous	-
526	WR13X10246		Fz Hinge Sxs Case Upper		Appelez-nous	-
528	WR01X10186		Base Shaft		Appelez-nous	-
531	WR02X12853		Fill Tube Cover - Disp		Appelez-nous	-
536	WR01X10484		8-32 X 5/8" Ph Ss Tcs		Appelez-nous	-
546	WR23X23883		Switch Light		Appelez-nous	-
547	WR74X26127		Toe Kick 48" Fi		Appelez-nous	-
548	WR23X21444		Switch Light Fz		Appelez-nous	-
549	WR17X26106		Tray Transformer		Appelez-nous	-
550	WR01X10065		Screw 10-32 Gxtt Flp 595 S		Appelez-nous	-
551	WR13X26109		Toe Kick Skirt 48"		Appelez-nous	-
560	WR01X10825		Bracket Anti-tip		Appelez-nous	-
1506	WR02X11208		Link Actuator Fz		Appelez-nous	-
1516	WR02X11211		Link Aucator Ff		Appelez-nous	-
1541	WR62X27836		Transformer 220v		Appelez-nous	-
3507	WG03A00042		Spring Closure   (Replaces: WR02X12948)				$ 31.76
3620	WR02X25861		Corner Key Asm Cafe Profile		Appelez-nous	-
8822	WH2X1211		Screw		Appelez-nous	-
