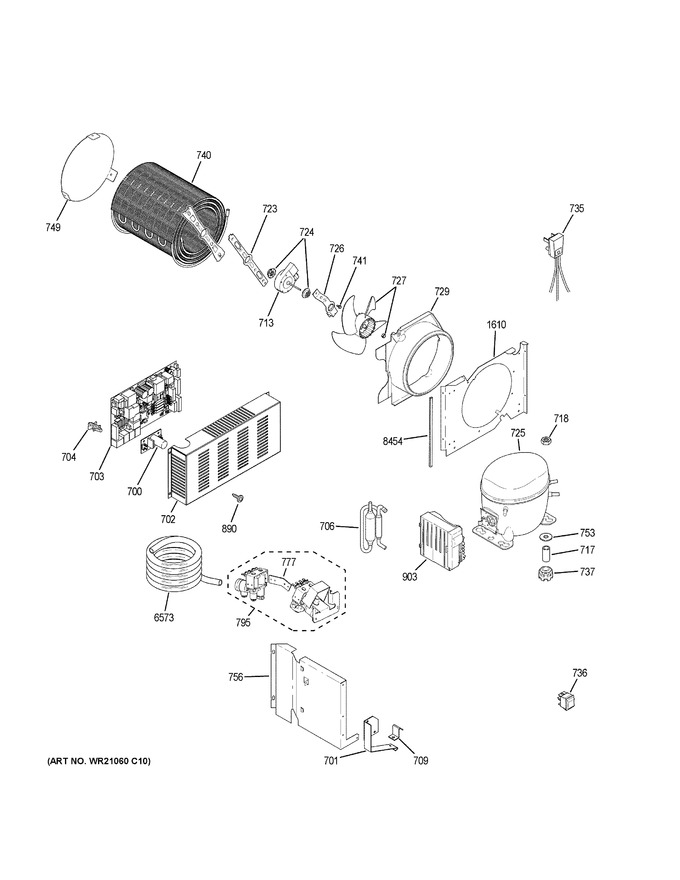

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
700	WR23X10622		Power Supply Pcb		Appelez-nous	-
701	WR02X12198		Bracket Water Valve		Appelez-nous	-
702	WR02X27053		Cover Board Main Sxs		Appelez-nous	-
703	WR55X27837		T Board Main 220v		Appelez-nous	-
704	WR01X10301		Main Board Stand Offs		Appelez-nous	-
706	WR74X10125		Dryer		Appelez-nous	-
709	WR02X12569		System Pan Bracket		Appelez-nous	-
713	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
717	WR01X10305		Steel Collar		Appelez-nous	-
718	WR01X10307		1/4-20 Hex Nut		Appelez-nous	-
723	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
724	WR01A00315		Grommet Fan Motor   (Replaces: WR02X10520)				$ 4.17
725	WR87X24183		Inverter Compressor Emb		Appelez-nous	-
726	WG03F00071		Bracket Cond Fan (mtg)   (Replaces: WR02X11863)			Immediately	$ 27.00
727	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 11.51
729	WR17X11252		Shroud Condenser		Appelez-nous	-
735	WR23X27839		Power Cord 220v		Appelez-nous	-
736	WR23X10571		Master Light Switch		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
740	WR01F02892		Prod Serv Condenser   (Replaces: WR84X10022)				$ 403.54
741	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
749	WR17X10694		Baffle Cond Air		Appelez-nous	-
753	WR01X10459		Flat Washer 3/8x 7/8		Appelez-nous	-
756	WR17X27894		Baffle Lh		Appelez-nous	-
777	WR02X10370		Bracket Water Valve		Appelez-nous	-
795	WR57X10088		Bracket And Valve Asm		Appelez-nous	-
890	WG04A01239		#10x1\2 Ph Sms   (Replaces: WD2X295)				$ 3.97
903	WR55X27835		Inverter Asm Comp Mount 220v		Appelez-nous	-
1610	WR17X12350		Cond Baffle		Appelez-nous	-
6573	WR02X13041		Tube Asm Water Valve		Appelez-nous	-
8454	WR38X10190		Edge Trim		Appelez-nous	-
