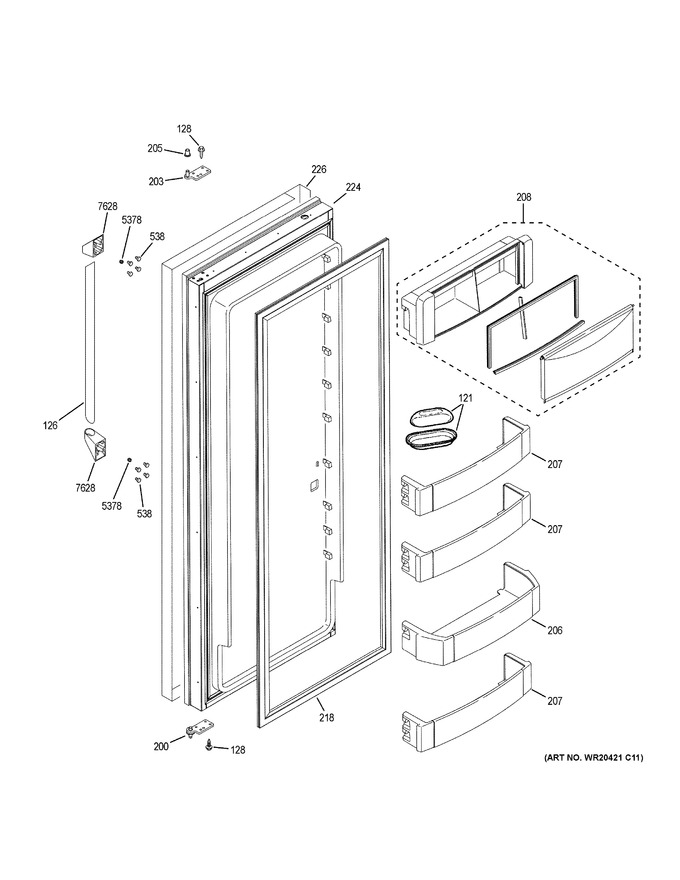

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 121 | WR19X10005 | Butter Dish And Cover |
|
- | |||||
| 126 | WR12X20950 | Handle Ss |
|
- | |||||
| 128 | WR01X21024 | Screw, 1/4-20 Tt Bht .87 |
|
- | |||||
| 200 | WR13X10657 | Hinge Door Btm |
|
- | |||||
| 203 | WR13X25052 | Hinge Asm Door Top Rh |
|
- | |||||
| 205 | WG03A00012 | Bushing Hinge Top (Replaces: WR02X10954) |
|
$ 49.33 | |||||
| 206 | WR71X25588 | Bin Asm Gallon 48 |
|
- | |||||
| 207 | WR71X25602 | Bin Door Asm 48 |
|
- | |||||
| 208 | WR71X26789 | Dairy Bin Door Asm 48 |
|
- | |||||
| 218 | WR24X10206 | Gasket Door |
|
- | |||||
| 224 | WR78X23183 | Door Foamed Asm Ff Sxs 48" |
|
- | |||||
| 226 | WR78X27018 | 48" Pro Door Wrap Ff |
|
- | |||||
| 538 | WR01X21110 | Scr 1/4-20x.5 Hex Cap Ss |
|
- | |||||
| 5378 | WR01A00759 | Set Screw (Replaces: WR02X11769) |
|
$ 22.23 | |||||
| 7628 | WR02X26879 | Handle Cap End |
|
- |
