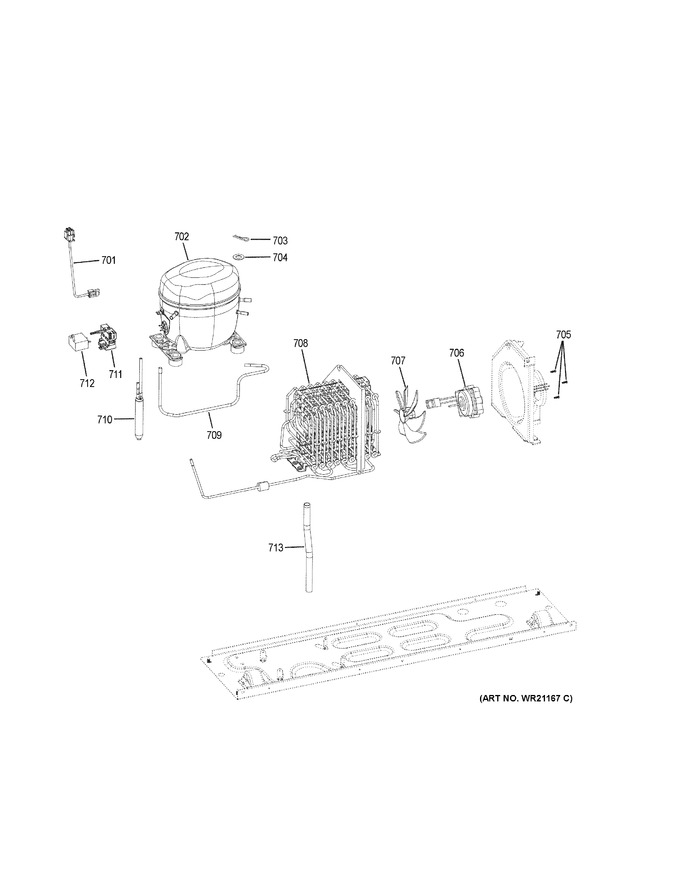

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 701 | WR87X28566 | Compressor Jumper |
|
- | |||||
| 702 | WR87X28597 | Compressor-egd80hlc |
|
- | |||||
| 703 | WR01X27318 | Pin Compressor |
|
- | |||||
| 704 | WR01X27359 | Washer Compressor |
|
- | |||||
| 705 | WR01X27332 | Screw 3.9mm X 11mm |
|
- | |||||
| 706 | WR60X27315 | Condenser Fan Motor |
|
$ 355.00 | |||||
| 707 | WR60X27274 | Condenser Fan Blade |
|
Immediately | $ 22.03 | ||||
| 708 | WR87X28558 | Condenser |
|
- | |||||
| 709 | WR01X28602 | Tube Suction |
|
- | |||||
| 710 | WR87X27294 | Drier |
|
- | |||||
| 711 | WR87X28579 | Tsd W/bale Strap |
|
- | |||||
| 712 | WR55X28559 | Capacitor |
|
- | |||||
| 713 | WR14X28577 | Drain Tube |
|
- |
