SELECT A DIAGRAM

Case Parts


Freezer Door - Lh


Freezer Door - Rh


Freezer Section


Fresh Food Door - Lh


Fresh Food Door - Rh


Fresh Food Section


Fresh Food Shelves


Ice Maker & Dispenser


Machine Compartment

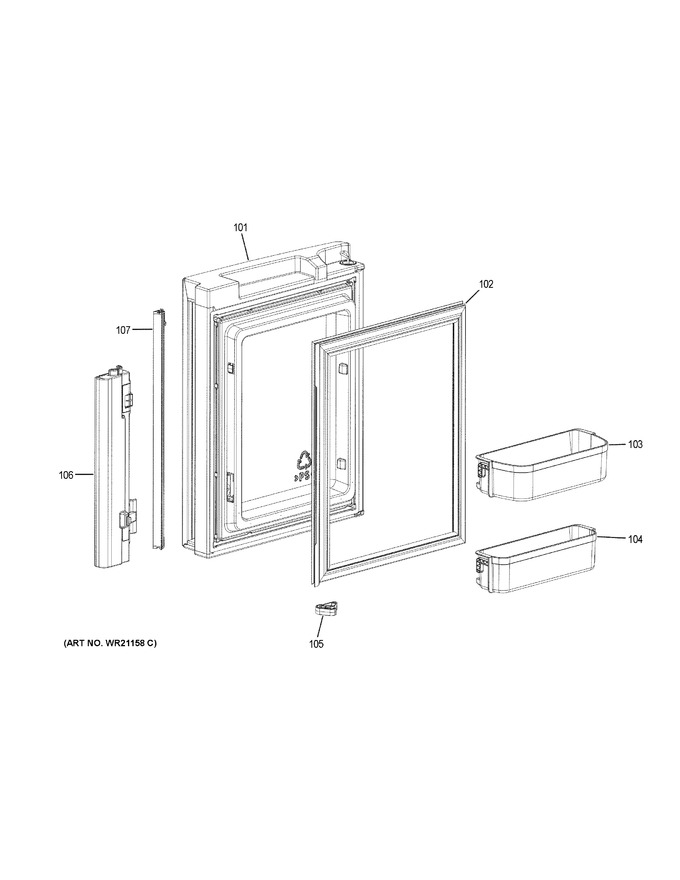

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WR78X28586		Refrigerator Door - Freezer Door Left St		Appelez-nous	-
102	WR14X28608		Freezer Door - Gasket Gray		Appelez-nous	-
103	WR71X28591		Freezer Door Bin Shallow		Appelez-nous	-
104	WR71X28614		Freezer Door Bin		Appelez-nous	-
105	WR01X28588		Spring Closure Door		Appelez-nous	-
106	WR14X28610		Freezer Door Articulating Mullion		Appelez-nous	-
107	WR55X28619		Freezer Door Handle Led Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
