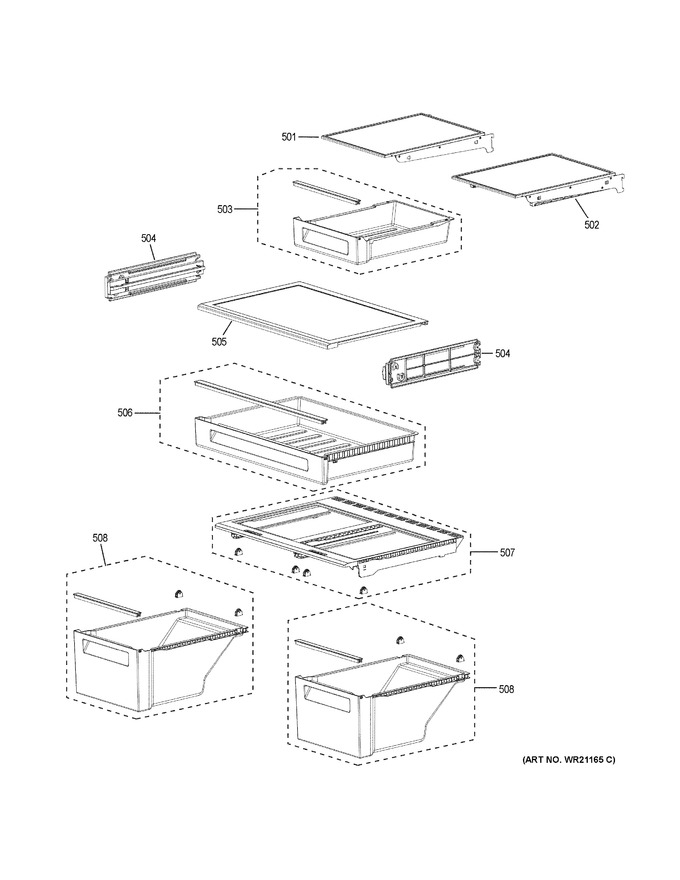

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
501	WR71X28773		Glass Shelf		Appelez-nous	-
502	WR71X28775		Deli Pan Glass Cover		Appelez-nous	-
503	WR71X28576		Deli Pan		Appelez-nous	-
504	WR72X28776		Meat Pan Slide Left & Right		Appelez-nous	-
505	WR71X28777		Meat Pan Glass Cover		Appelez-nous	-
506	WR71X28617		Full Width Meat Pan		Appelez-nous	-
507	WR71X28571		Vegetable Pan Cover		Appelez-nous	-
508	WR71X28572		Vegetable Pan		Appelez-nous	-
