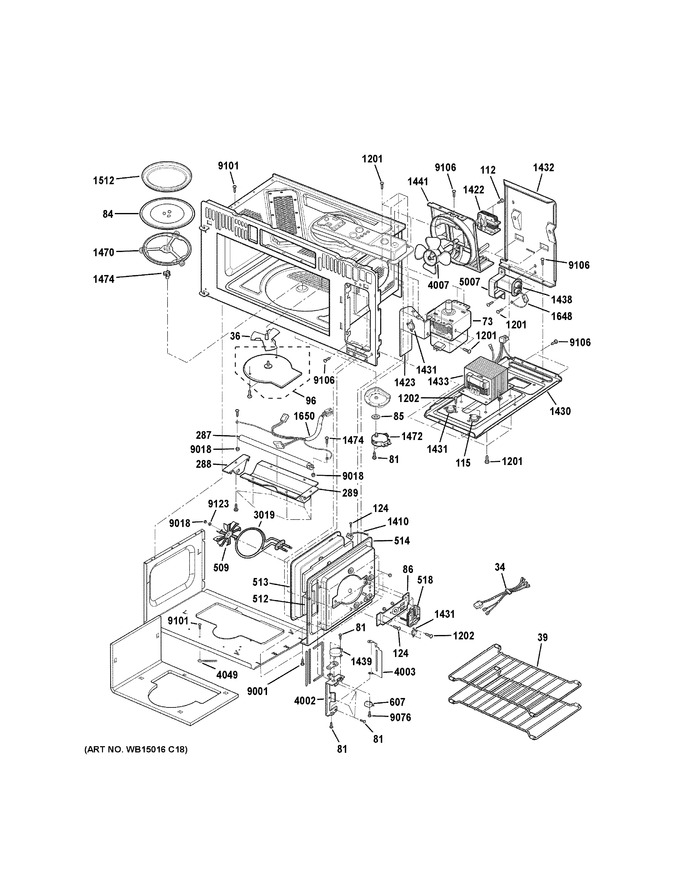

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WB18X21102 | Harness,single |
|
- | |||||
| 36 | WB06X10833 | Fan, Stirrer Asm |
|
- | |||||
| 39 | WB48X10048 | Shelf |
|
- | |||||
| 73 | WB27X10865 | Magnetron |
|
- | |||||
| 81 | WB02X10728 | Screw - Hand |
|
- | |||||
| 84 | WB49X10205 | Tray,glass |
|
- | |||||
| 85 | WB01X10413 | Gasket |
|
- | |||||
| 86 | WB56X10639 | Plate Side Heater |
|
- | |||||
| 96 | WG02L02412 | Cover Asm, Stirrer Fan (Replaces: WB06X10787) |
|
$ 29.41 | |||||
| 112 | WB02X10720 | Screw Tapping Truss Head |
|
- | |||||
| 115 | WB27X11034 | Thermostat(plate) |
|
- | |||||
| 124 | WB01X10127 | Screw Tapping Truss Head |
|
- | |||||
| 287 | WB21X10141 | Heater Miraclon |
|
- | |||||
| 288 | WB06X10836 | Bracket,heater" |
|
- | |||||
| 289 | WB06X10842 | Reflector |
|
- | |||||
| 509 | WB06X10666 | Fan |
|
- | |||||
| 512 | WB06X10664 | Glass Wool |
|
- | |||||
| 513 | WB06X10832 | Chamber |
|
- | |||||
| 514 | WB35X10018 | Insulator |
|
- | |||||
| 518 | WB26X10183 | Motor(circ) Circulation |
|
- | |||||
| 607 | WB24X817 | Switch Micro |
|
- | |||||
| 1201 | WB02X10745 | Screw - Binding Head |
|
- | |||||
| 1202 | WB02X10730 | Screw - Pan Head Tapping |
|
- | |||||
| 1410 | WG02F05163 | Thermistor Ntc (Replaces: WB18X10287) |
|
Immediately | $ 91.76 | ||||
| 1422 | WB26X10247 | Motor,ac Fan |
|
- | |||||
| 1423 | WB38X10096 | Guide Air |
|
- | |||||
| 1430 | WB39X10029 | Base, Transformer |
|
- | |||||
| 1431 | WB20X10048 | Thermostat |
|
- | |||||
| 1432 | WB38X10097 | Guide Air |
|
- | |||||
| 1433 | WB20X10047 | Transformer,h.v |
|
- | |||||
| 1438 | WB27X11031 | Capacitor H.v. |
|
- | |||||
| 1439 | WB26X10248 | Motor, Ac Synchronous |
|
- | |||||
| 1441 | WB39X10026 | Guide,suction |
|
- | |||||
| 1470 | WB06X10834 | Ring Asm |
|
- | |||||
| 1472 | WB26X10193 | Motor Turntable |
|
- | |||||
| 1474 | WB02X11503 | Shaft,turntable |
|
- | |||||
| 1475 | WB02X10726 | Screw -lead Wire Assy |
|
- | |||||
| 1512 | WB49X10053 | Speedcooktray-adv 120-240atc-240bi Metal |
|
- | |||||
| 1648 | WB18X10286 | Cable Asm |
|
- | |||||
| 1650 | WB18X10456 | Harness,single |
|
- | |||||
| 3019 | WB44X10046 | Convection Heater |
|
- | |||||
| 4002 | WB02X11235 | Bracket Damper |
|
- | |||||
| 4003 | WB02X11236 | Bracket Damper |
|
- | |||||
| 4007 | WB38X10005 | Fan Blade |
|
- | |||||
| 4049 | WB02X11233 | Holder Wire |
|
- | |||||
| 5007 | WB02X11226 | Bracket Capacitor |
|
- | |||||
| 9001 | WB56X10204 | Mounting Plate Assy |
|
- | |||||
| 9018 | WB1X1520 | Nut Common |
|
- | |||||
| 9076 | WB1X1509 | Screw -switch Micro |
|
- | |||||
| 9101 | WB1X1514 | Screw Tapping |
|
- | |||||
| 9106 | WB1X1515 | Screw Tapping |
|
- | |||||
| 9123 | WB1X1522 | Washer Common |
|
- |
