SELECT A DIAGRAM
Control Parts
Door Parts
Installation Parts
Interior Parts (1)
Interior Parts (2)
Latch Board Parts
Oven Cavity Parts
SELECT A DIAGRAM
New Model Search:

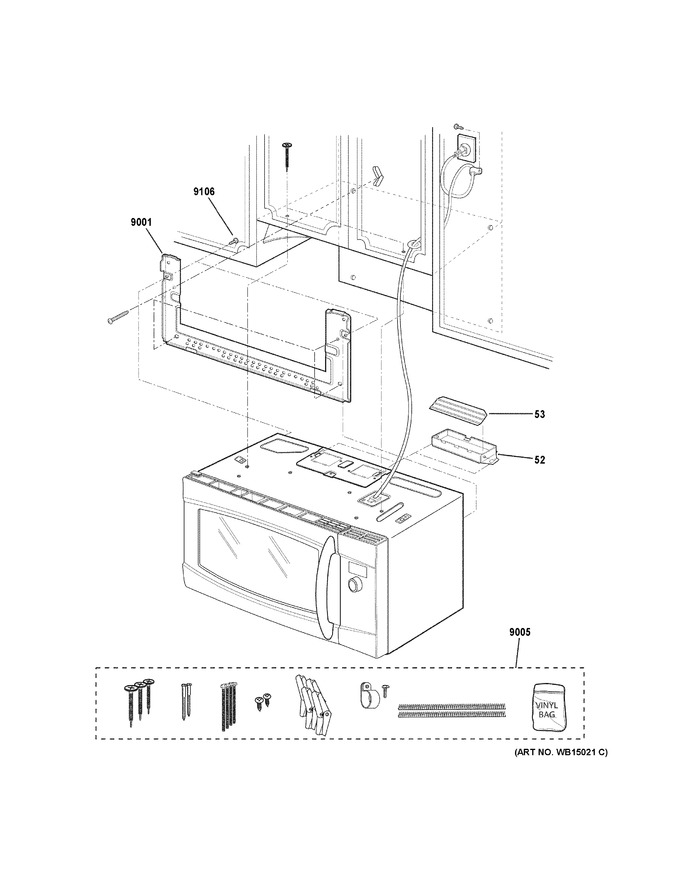

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 52 | WG02A00694 | Exhaust Adapter (Replaces: WB06X10371) |
|
$ 19.06 | |||||
| 53 | WB06X10370 | Exhaust Damper |
|
- | |||||
| 9001 | WB56X10204 | Mounting Plate Assy |
|
- | |||||
| 9005 | WB01X21135 | Installation Hardware |
|
- | |||||
| 9106 | WB1X1515 | Screw Tapping |
|
- |
