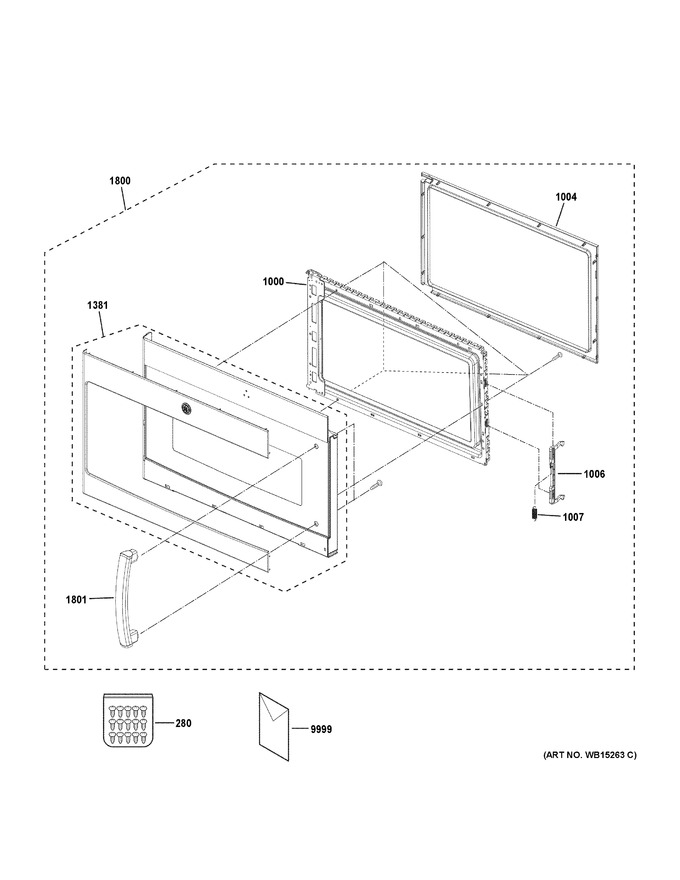

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 280 | WB01X10305 | Otr Hardware Asm Bag |
|
- | |||||
| 1000 | WB56X21131 | Door Frame Asm |
|
- | |||||
| 1004 | WB07X11309 | Cover,choke |
|
- | |||||
| 1006 | WB06X10841 | Latch, Door |
|
- | |||||
| 1007 | WB10X21107 | Spring, Latch Door |
|
- | |||||
| 1381 | WB56X25573 | Door Panel Asm |
|
- | |||||
| 1800 | WB56X30354 | Stainless Steel Door With Flat Ge Logo |
|
- | |||||
| 1801 | WB15X21101 | Handle Door, Ss |
|
- | |||||
| 9999 | 31-30656 | Pm Mini Manual |
|
- | |||||
| 9999 | 49-40177 | Pm Template |
|
- | |||||
| 9999 | 49-40677 | Pm Owners Manual |
|
- | |||||
| 9999 | 49-40622-1 | Pm Template |
|
- | |||||
| 9999 | 49-40679 | Pm Install Instructions |
|
- |
