SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door

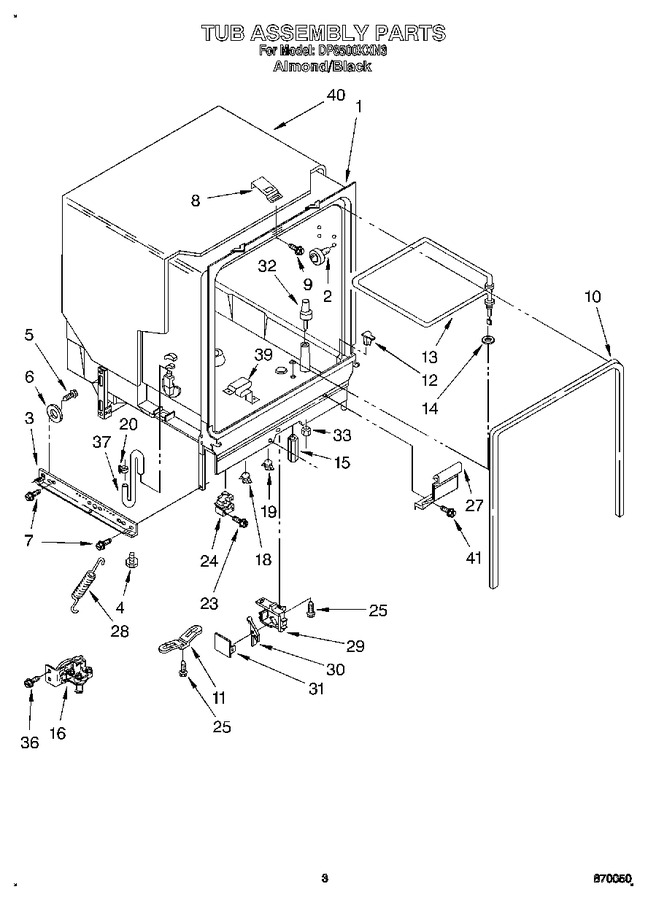

03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack, Literature


06 - Cabinet, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3370851		Tub Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 302849)			Immediately	$ 84.72
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
8	3372030		Plate, Latch		Appelez-nous	-
9	3372029		Screw, 8-32		Appelez-nous	-
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 74.12
11	3370555		Bracket, Thermostat		Appelez-nous	-
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 63.90
13	3369416		Heater		Appelez-nous	-
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.19
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	WP8274220		Water Valve   (Replaces: 3370706)				$ 212.84
18	WP661566		Thermostat, Hi-limit   (Replaces: 3370783)			Immediately	$ 31.28
19	3373359		Thermostat		Appelez-nous	-
20	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.40
23	WP489128		Screw   (Replaces: 3370225)				$ 10.88
24	3369447		Relay				$ 52.29
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 7.75
27	3368983		Shield, Harness		Appelez-nous	-
28	WP3374343		Spring, Door (2)   (Replaces: 3374343)			Immediately	$ 33.57
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP3376397		Float   (Replaces: 3371282)				$ 103.47
33	717488		Nut				$ 12.83
36	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
37	3371030		Hose, Inlet		Appelez-nous	-
39	3368987		Support, Heater		Appelez-nous	-
40	W11086533		Sound Shield   (Replaces: 3369329)			Immediately	$ 31.30
41	W11693756		Screw, 8-180 X 1/2   (Replaces: 359625)			Immediately	$ 14.06

    View Diagram in Separate Window       Print Part List
