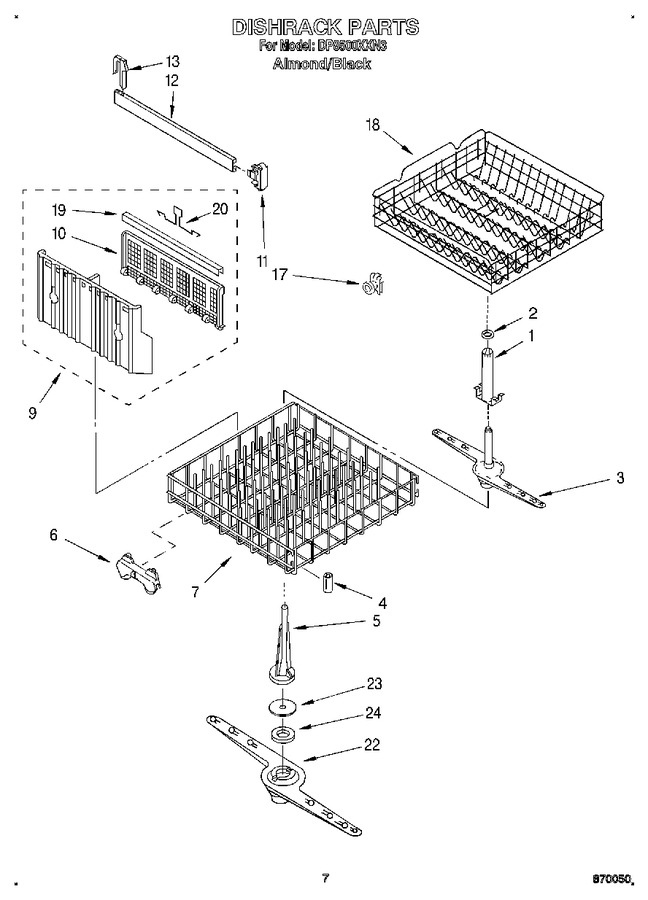

01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Pump And Motor
05 - Dishrack, Literature
06 - Cabinet, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3367070 | Support, Arm |
|
- | |||||
| 2 | 303722 | Clip |
|
$ 5.75 | |||||
| 3 | 3367067 | Spray Arm, Upper |
|
- | |||||
| 4 | 304490 | Bumper (2) |
|
- | |||||
| 5 | 304170 | Tower, Pressure |
|
$ 72.38 | |||||
| 6 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3369509) |
|
$ 98.69 | |||||
| 7 | W10311986 | Dishrack, Lower (includes Items 4 & 6) (Replaces: 3368516) |
|
Immediately | $ 188.14 | ||||
| 9 | 3369492 | Silverware Basket Assembly |
|
- | |||||
| 10 | 3369489 | Cover, Basket |
|
- | |||||
| 11 | 300845 | End Cap (front Or Rear) |
|
$ 7.63 | |||||
| 12 | 3369071 | Track |
|
- | |||||
| 13 | 3369046 | Stop, Track (2) |
|
- | |||||
| 17 | 3371581 | Wheel And Axle Assembly (4) |
|
- | |||||
| 18 | W11169039 | Dishrack, Upper (Replaces: 3371661) |
|
Immediately | $ 203.14 | ||||
| 19 | 717528 | Trim, Basket |
|
- | |||||
| 20 | 300086 | Handle, Basket |
|
- | |||||
| 22 | 3369347 | Sprayarm, Lower |
|
- | |||||
| 23 | 3367910 | Cap, Nozzle |
|
$ 39.70 | |||||
| 24 | 675677 | Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks) |
|
- | |||||
| 24 | WP676453 | Vinyl Touch-up (white) (Replaces: 676453) |
|
Immediately | $ 53.65 | ||||
| 24 | 675679 | Tine Tip Repair Kit (white - Enough For Two Complete Dishracks) |
|
Immediately | $ 38.83 | ||||
| 24 | WP676455 | Vinyl Touch-up (grey) (Replaces: 676455) |
|
Immediately | $ 39.58 | ||||
| 24 | 676458 | Tine Tip Repair Kit (grey Enough For Two Complete Dishracks) |
|
$ 48.32 | |||||
| 24 | 4317925 | Side Panel Kit (white) |
|
- | |||||
| 24 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 24 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 24 | 719576 | Bearing, Nozzle |
|
$ 7.48 | |||||
| 24 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 24 | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 59.89 | |||||
| 24 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 94.14 | |||||
| 24 | 350941 | Leveler (thinner) |
|
- | |||||
| 24 | 978883 | Almond (uncut) |
|
- | |||||
| 24 | 799340 | Black (uncut) |
|
- | |||||
| 24 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 24 | 4317926 | Avocado |
|
- | |||||
| 24 | 4317927 | Gold |
|
- | |||||
| 24 | 4317929 | Side Panel Kit: (almond) |
|
- | |||||
| 24 | 4317930 | Toast |
|
- | |||||
| 24 | 4317931 | Platinum |
|
- | |||||
| 24 | 4318050 | Door Spring Kit (heavy Duty) |
|
$ 23.68 | |||||
| 24 | W10840471 | Vinyl Touch-up (blue) (Replaces: 675576) |
|
$ 47.66 | |||||
| LIT0677967 | Do-it Yourself, Manual Almond/black |
|
- | ||||||
| LIT3370466 | Wiring Diagram |
|
- | ||||||
| LIT3373747 | Guide, Use & Care |
|
- | ||||||
| LIT3372194 | Energy Guide |
|
- | ||||||
| LIT3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | ||||||
| LIT3374367 | Instructions, Installation |
|
- |
