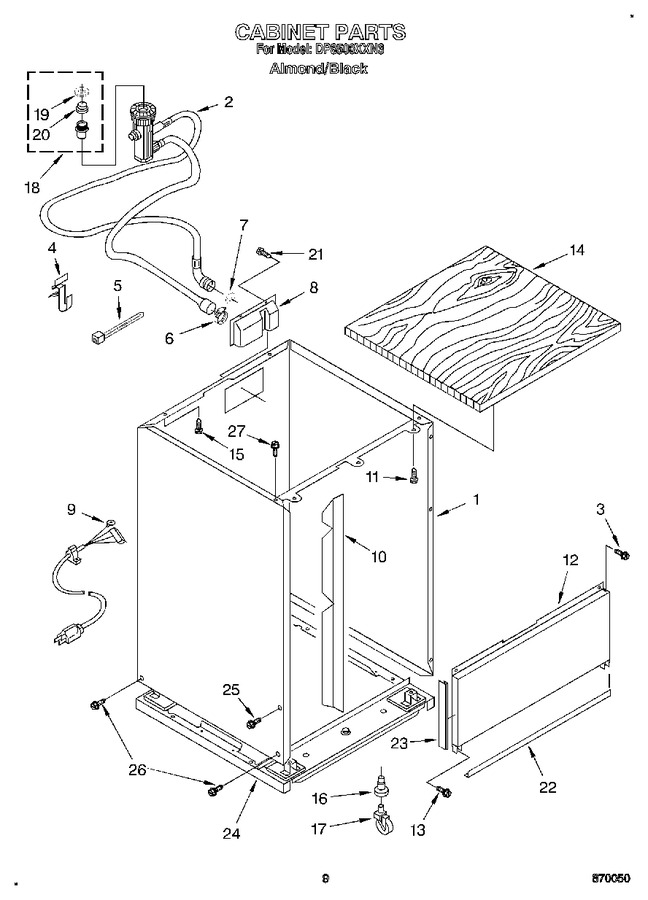

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3370306		Shell Assembly (almond)		Appelez-nous	-
2	WPW10273574		Coupler Assembly   (Replaces: 3370321)			Immediately	$ 204.68
3	WP302868		Screw (2)   (Replaces: 302868)			Immediately	$ 7.75
4	3370323		Retainer, Hose		Appelez-nous	-
5	WPW10339879		Clip, Strap   (Replaces: 3347868)				$ 7.90
6	WP3367052		Clamp, Hose   (Replaces: 3367052)				$ 8.32
7	WP16123		Washer   (Replaces: 16123)				$ 7.70
8	3371343		Housing, Hose				$ 44.36
9	3371542		Cord, Power				$ 170.54
10	3371807		Pad, Divider		Appelez-nous	-
11	WP3373329		Screw   (Replaces: 3373329)				$ 7.68
12	3371640		Shroud, Caster		Appelez-nous	-
13	3370544		Screw				$ 8.06
14	3373198		Panel, Top Almond/black		Appelez-nous	-
15	WP681414		Screw (2)   (Replaces: 304428)			Immediately	$ 7.85
16	300450		Socket, Caster		Appelez-nous	-
17	300424		Caster		Appelez-nous	-
18	30168LF		Adapter, Faucet   (Replaces: 713750)			Immediately	$ 12.15
19	713747		Washer		Appelez-nous	-
20	713748		Bushing		Appelez-nous	-
21	3370826		Screw (2)		Appelez-nous	-
22	3369588		Trim, Bottom		Appelez-nous	-
23	3371430		Trim, Side (2)		Appelez-nous	-
24	3370551		Frame Assembly		Appelez-nous	-
25	3371635		Screw, 8-18 X 1/2		Appelez-nous	-
26	3371644		Screw, 8-18 X 5/8				$ 8.65
27	WP300096		Air Gap Kit Prevents Back Siphoning Of Contaminated Water Into Dishwasher)   (Replaces: 300096)				$ 66.72
27	302251		Screw		Appelez-nous	-
27	4317856		Conversion Kit (to Convert From Portable To Undercounter Installation)		Appelez-nous	-
