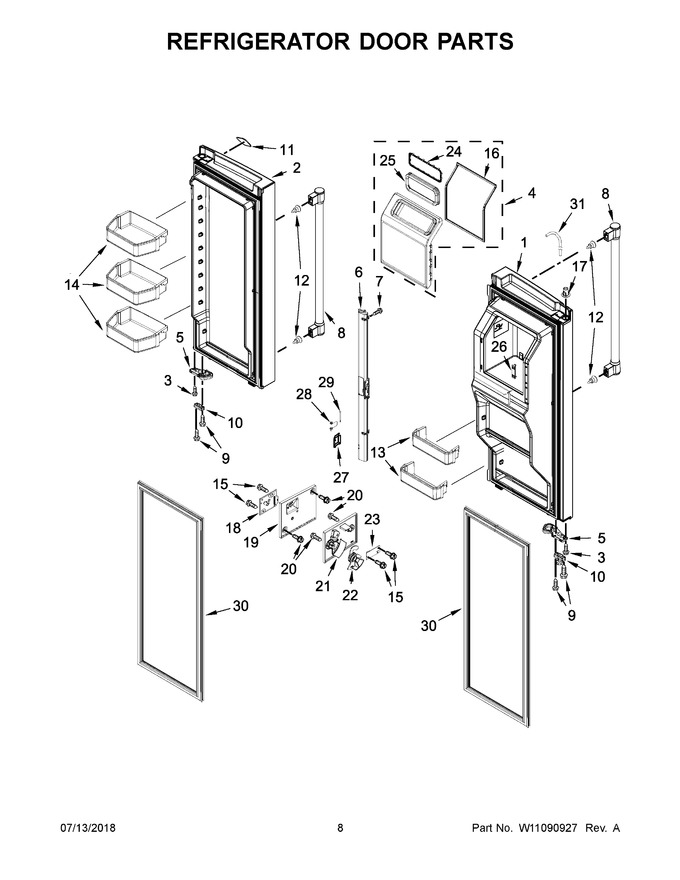

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10890966 | Door, Left (stainless) |
|
- | |||||
| 2 | W10890967 | Door, Right (stainless) |
|
- | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.49 | |||||
| 4 | W10549593 | Assembly, Ice Door |
|
$ 214.39 | |||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 17.18 | |||||
| 6 | W10806457 | Mullion, Door (grey) (Replaces: W10698199) |
|
Immediately | $ 270.14 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 8 | W11024095 | Handle, Door (stainless) (Replaces: W10886562) |
|
$ 215.60 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 22.24 | ||||
| 11 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 37.71 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 13 | W10849724 | Trivet, 2 Liter (Replaces: W10555427) |
|
$ 170.35 | |||||
| 14 | W10860198 | Bucket, Gallon (Replaces: W10519670) |
|
Immediately | $ 252.66 | ||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 66.10 | |||||
| 17 | W10562834 | Clip, Tube (Replaces: W10245516) |
|
$ 14.91 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 313.30 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 42.38 | |||||
| 20 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 21 | W10258502 | Cover, Emitter |
|
$ 85.47 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.62 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 222.54 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 30.78 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 46.64 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 22.06 | ||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 75.86 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 87.08 | |||||
| 29 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 17.76 | |||||
| 30 | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 254.40 | ||||
| 31 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 122.64 | |||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 16.75 |
