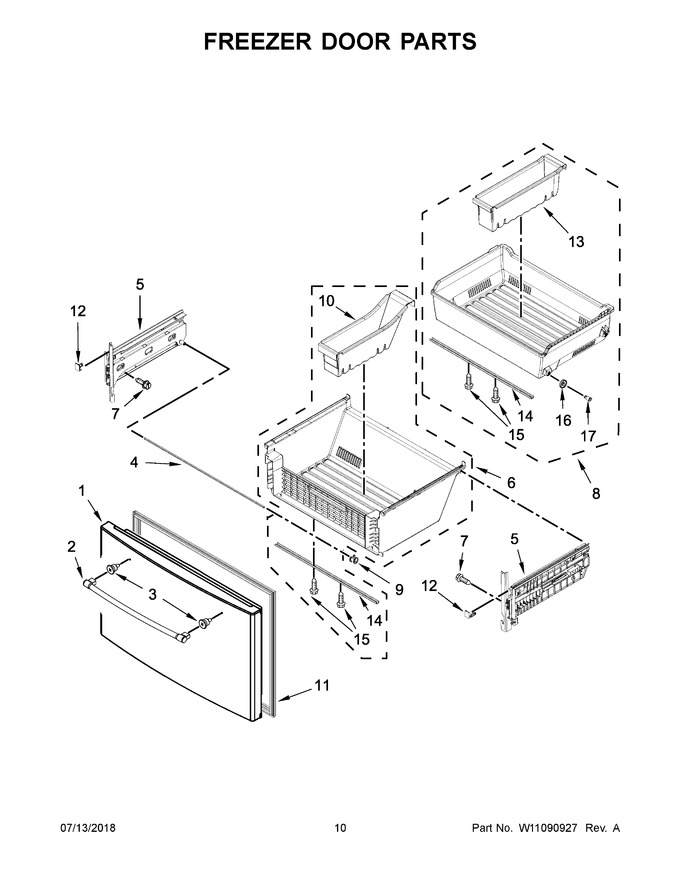

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10890965		Door, Freezer (stainless)		Appelez-nous	-
2	W10886552		Handle, Door (stainless)				$ 194.80
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 98.10
5	W11668671		Assembly, Bracket (left Hand)   (Replaces: W10795770)			Immediately	$ 529.03
6	W10594047		Assembly, Lower Pan				$ 307.51
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W10704090		Bin, Upper				$ 181.92
9	W10852685		Clip, Shaft   (Replaces: W10709748)				$ 11.39
10	W10507444		Divider, Lower				$ 62.14
11	W10407216		Gasket, Door (grey)   (Replaces: W10248749)			Immediately	$ 267.66
12	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 83.65
13	WPW10485654		Divider, Upper   (Replaces: W10485654)				$ 66.81
14	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
15	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
16	W11578839		Roller, Pan   (Replaces: W10248555)			Immediately	$ 14.96
17	W11573594		Axle, Roller   (Replaces: W10643690)				$ 19.14
12A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 86.71
5A	W11668671		Assembly, Bracket (right Hand)   (Replaces: W10795768)			Immediately	$ 529.03

    View Diagram in Separate Window       Print Part List
