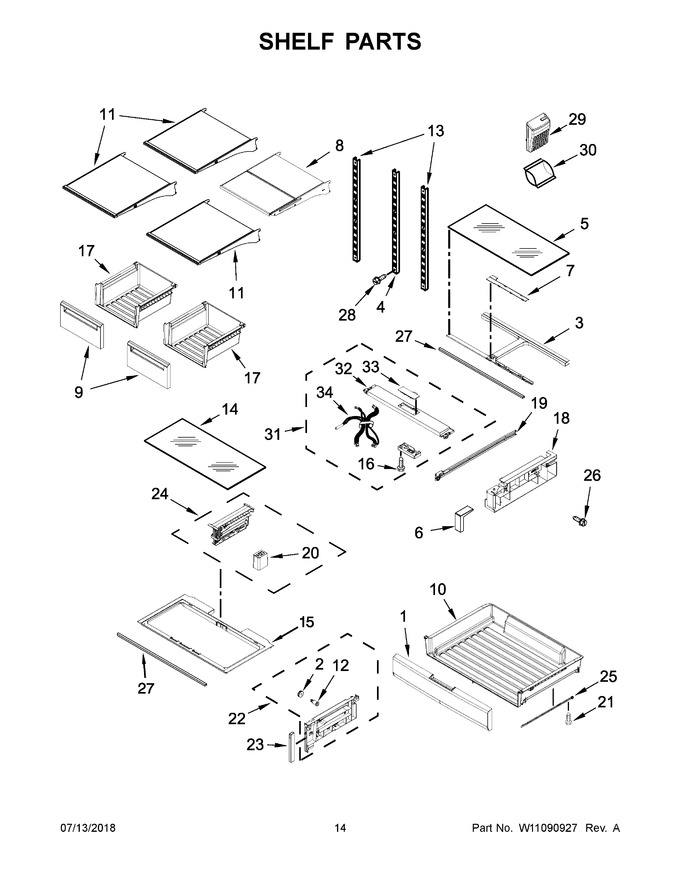

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10559660 | Front, Pantry (Replaces: W10559660) |
|
$ 232.50 | |||||
| 2 | WPW10248544 | Roller, Guide (Replaces: W10248544) |
|
$ 7.70 | |||||
| 3 | WPW10489978 | Support, Pantry (Replaces: W10489978) |
|
$ 53.56 | |||||
| 4 | WPW10248516 | Ladder, Center (Replaces: W10248516) |
|
$ 34.18 | |||||
| 5 | WPW10248799 | Glass, Pantry (Replaces: W10248799) |
|
$ 214.36 | |||||
| 6 | W10426775 | Front, Sideplate (pantry) (left Hand) |
|
$ 28.25 | |||||
| 7 | W10490266 | Support, Pantry Cover (includes Gasket) |
|
$ 83.20 | |||||
| 8 | WPW10401836 | Shelf, Tuck (Replaces: W10401836) |
|
$ 260.78 | |||||
| 9 | W11817014 | Front, Crisper (Replaces: W10524914) |
|
$ 184.34 | |||||
| 10 | WPW10654844 | Pan, Pantry (Replaces: W10498901) |
|
Immediately | $ 130.40 | ||||
| 11 | WPW10402687 | Shelf, Fixed (Replaces: W10402687) |
|
$ 208.31 | |||||
| 12 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 34.80 | |||||
| 13 | W11690684 | Ladder, Side (Replaces: W10372170) |
|
$ 48.21 | |||||
| 14 | WPW10248578 | Glass, Crisper (Replaces: W10248578) |
|
$ 315.91 | |||||
| 15 | W10717570 | Cover, Crisper |
|
$ 188.91 | |||||
| 16 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 17 | W10850129 | Pan, Crisper (Replaces: W10410352) |
|
Immediately | $ 145.86 | ||||
| 18 | WPW10498906 | Sideplate, Pantry (left Hand) (Replaces: W10498906) |
|
$ 125.75 | |||||
| 19 | W10508327 | Roller Runner, Pantry (left Hand) |
|
$ 286.73 | |||||
| 20 | W10530315 | Support, Crisper |
|
$ 16.19 | |||||
| 21 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 6.95 | |||||
| 22 | W11763411 | Sideplate, Crisper (left Hand) (Replaces: W10549601) |
|
$ 61.71 | |||||
| 23 | W10488299 | Front, Sideplate (crisper) |
|
$ 34.35 | |||||
| 24 | W10549606 | Assembly, Crisper Track |
|
$ 117.33 | |||||
| 25 | W10508330 | Runner, Pantry Roller (left Hand) |
|
- | |||||
| 26 | W10185612 | Screw |
|
$ 6.74 | |||||
| 27 | WPW10236512 | Support, Front (Replaces: W10236512) |
|
$ 127.67 | |||||
| 28 | W10423560 | Screw |
|
- | |||||
| 29 | W11605789 | Holder, Produce Filter (Replaces: W10408748) |
|
Immediately | $ 16.82 | ||||
| 30 | W10346771 | Filter, Produce Preserver |
|
- | |||||
| 31 | W11088190 | Cover, Front (includes Led Assembly) (Replaces: W10668854) |
|
$ 309.05 | |||||
| 32 | W10525199 | Cover, Top |
|
- | |||||
| 33 | W10847487 | Assembly, User Interface (Replaces: W10668850) |
|
$ 440.75 | |||||
| 34 | W10668846 | Assembly, Pantry Wire (includes Thermistor) |
|
Immediately | $ 119.57 | ||||
| 18A | WPW10498902 | Sideplate, Pantry (right Hand) (Replaces: W10498902) |
|
$ 66.11 | |||||
| 19A | W10508326 | Roller Runner, Pantry (right Hand) |
|
$ 296.65 | |||||
| 22A | W10549602 | Sideplate, Crisper (right Hand) |
|
$ 120.17 | |||||
| 25A | W10508328 | Runner, Pantry Roller (right Hand) |
|
- | |||||
| 6A | W10356979 | Front, Sideplate (pantry) (right Hand) |
|
- |
