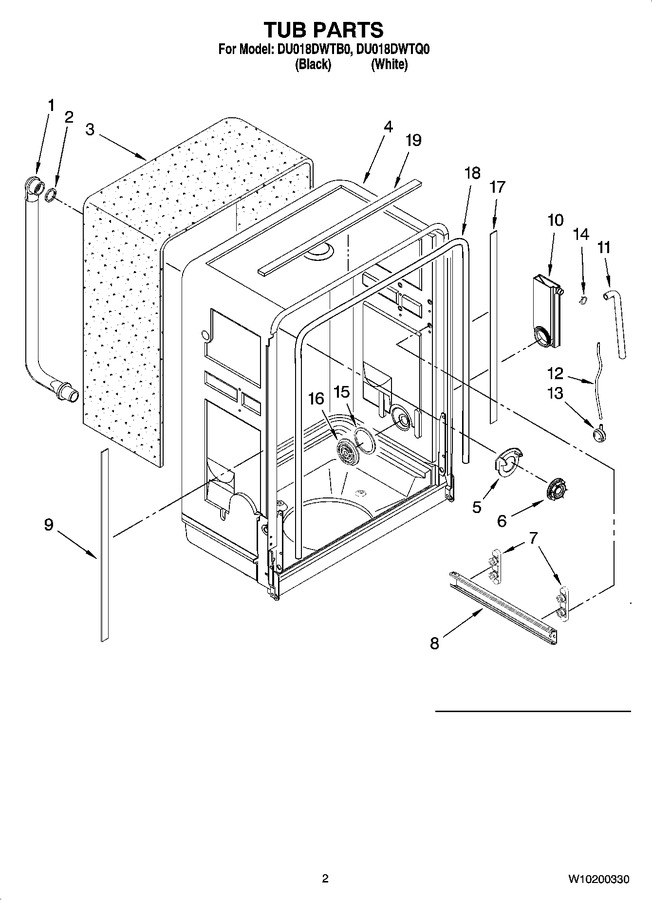

02 - Tub Parts


03 - Door And Toe Panel Parts


04 - Frame Parts


05 - Pump And Sprayarm Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10181553		Tube, Feed		Appelez-nous	-
2	W10181554		Gasket		Appelez-nous	-
3	W10181559		Shield, Sound		Appelez-nous	-
4	WPW10181555		Tub, Dishwasher   (Replaces: W10181555)				$ 543.04
5	W10199510		Guide		Appelez-nous	-
6	W10181579		Nut		Appelez-nous	-
7	W10181580		Wheel, Tub				$ 24.82
8	W10181581		Track		Appelez-nous	-
9	W10200348		Trim, Tank Left (black)		Appelez-nous	-
9	W10200346		Trim, Tank Left (white)		Appelez-nous	-
10	W10181582		Inlet, Aif		Appelez-nous	-
11	W10181582		Hose, Inlet		Appelez-nous	-
12	W10181587		Hose, Pvc		Appelez-nous	-
13	W10181588		Switch, Pressure				$ 94.20
14	W10181583		Clamp		Appelez-nous	-
15	W10181585		Gasket		Appelez-nous	-
16	W10181586		Bezel, Inlet		Appelez-nous	-
17	W10200347		Trim, Tank Right (white)		Appelez-nous	-
17	W10200349		Trim, Tank Right (black)		Appelez-nous	-
18	W10181598		Gasket, Door		Appelez-nous	-
19	W10200352		Tank, Trim Top (white)		Appelez-nous	-
19	W10200353		Tank, Trim Top (black)		Appelez-nous	-
