01 - Control Panel Parts
02 - Tub Parts
03 - Door And Toe Panel Parts
04 - Frame Parts

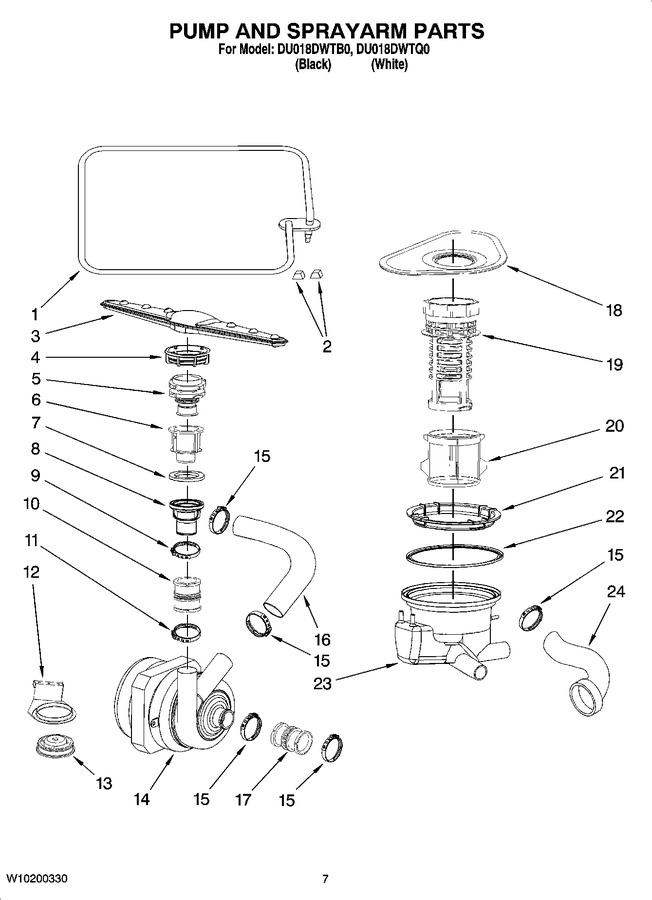

05 - Pump And Sprayarm Parts
06 - Dishrack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10181654 | Heater |
|
- | |||||
| 2 | W10181653 | Cover |
|
- | |||||
| 3 | W10181652 | Sprayarm |
|
- | |||||
| 4 | W10181651 | Nut, Lower Sprayarm |
|
- | |||||
| 5 | W10181650 | Support, Arm |
|
- | |||||
| 6 | W10181647 | Support, Lower Manifold |
|
- | |||||
| 7 | W10181554 | Gasket |
|
- | |||||
| 8 | W10200362 | Nut, Support Manifold |
|
- | |||||
| 9 | W10181635 | Clamp (Replaces: W10181646) |
|
- | |||||
| 10 | W10181636 | Hose |
|
- | |||||
| 11 | W10181635 | Clamp |
|
- | |||||
| 12 | W10181643 | Support |
|
- | |||||
| 13 | W10181642 | Grommet |
|
- | |||||
| 14 | W10181641 | Motor, Pump |
|
- | |||||
| 15 | W10181635 | Clamp |
|
- | |||||
| 16 | W10181638 | Hose |
|
- | |||||
| 17 | W10181636 | Hose |
|
- | |||||
| 18 | W10181660 | Sieve |
|
- | |||||
| 19 | W10181659 | Filter, Drain |
|
- | |||||
| 20 | W10181658 | Microfilter |
|
- | |||||
| 21 | W10181657 | Nut, Sump |
|
- | |||||
| 22 | W10181656 | Gasket, Sump |
|
- | |||||
| 23 | W10181655 | Sump |
|
$ 78.10 | |||||
| 24 | W10181634 | Hose, Drain |
|
$ 74.32 |
