01 - Control Panel Parts
02 - Tub Parts
03 - Door And Toe Panel Parts
04 - Frame Parts
05 - Pump And Sprayarm Parts
06 - Dishrack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

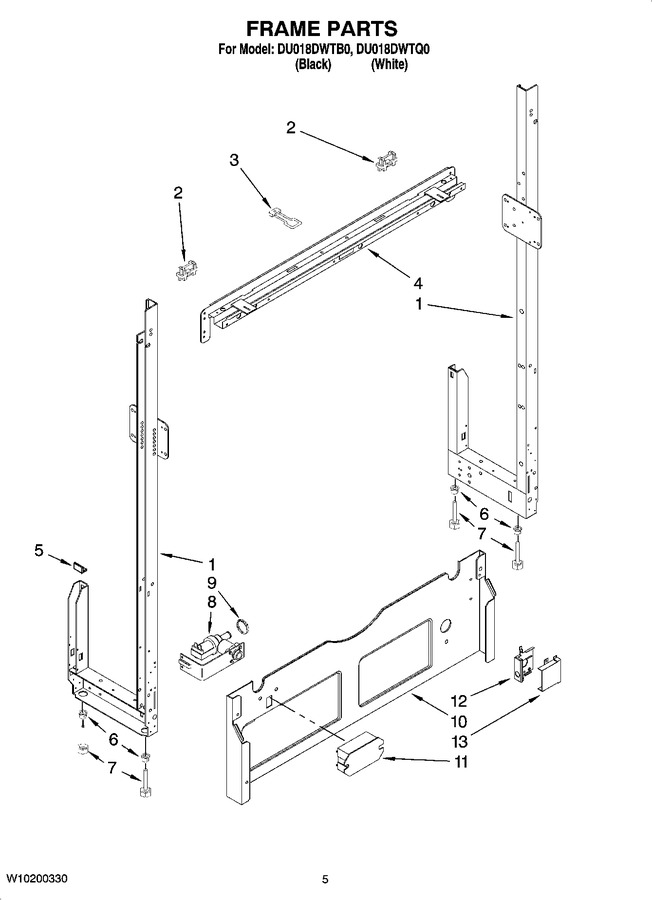

| 1 | W10181556 | Frame, Uprights (right) |
|
- | |||||
| 1 | W10181557 | Frame, Uprights (left) |
|
- | |||||
| 2 | W10200351 | Block (black) |
|
- | |||||
| 2 | W10200350 | Block (white) |
|
- | |||||
| 3 | W10199509 | Strike |
|
- | |||||
| 4 | W10200369 | Brace, Upper (white) |
|
- | |||||
| 4 | W10181578 | Brace, Upper (black) |
|
- | |||||
| 5 | W10199513 | Plate |
|
- | |||||
| 6 | W10199512 | Nut, Foot |
|
- | |||||
| 7 | W10181596 | Foot |
|
- | |||||
| 8 | W10181595 | Valve, Inlet |
|
- | |||||
| 9 | W10199511 | Seal |
|
- | |||||
| 10 | W10181589 | Brace, Lower |
|
- | |||||
| 11 | W10181592 | Relay |
|
- | |||||
| 12 | W10181591 | Box, Terminal |
|
- | |||||
| 13 | W10181590 | Cover, Terminal Box |
|
- |
