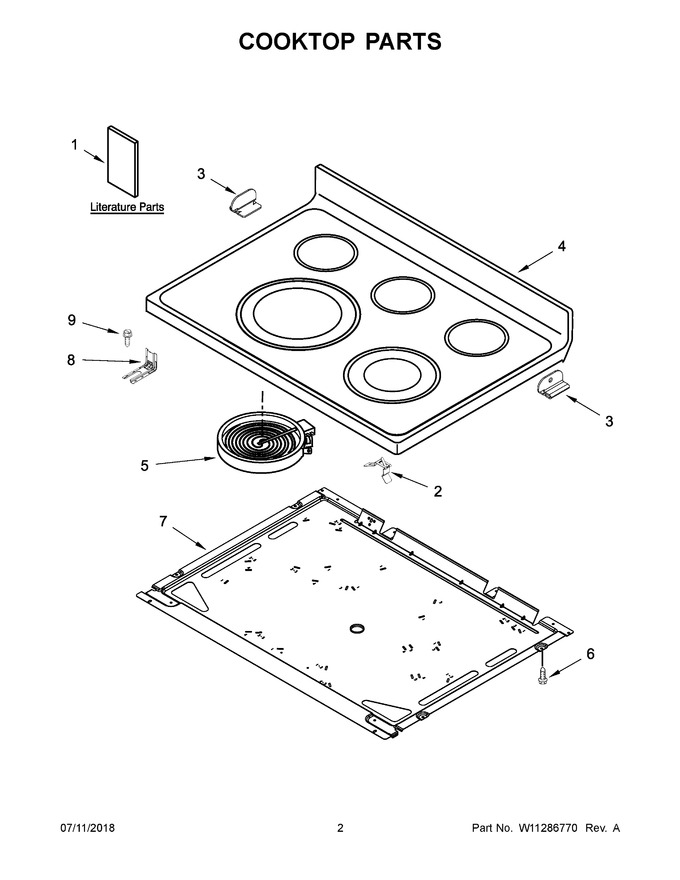

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11085337		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11165675		Cooktop (black)   (Replaces: W10865061)				$ 571.63
5	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W11085358		Use And Care Guide		Appelez-nous	-
1B	W11096112		Tech Sheet (english)		Appelez-nous	-
1C	W11096060		Guide, Quick Start (english/french)		Appelez-nous	-
1D	W11097305		Guide, Internet Connectivity		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
5A	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
5B	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 134.44
5C	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
5D	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 336.57
NI	W11134550		Harness, Cooktop (right)				$ 228.90
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W11190446		Harness, Cooktop (left)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11176673		Harness, Main		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	W11025427		Harness, Wifi Module		Appelez-nous	-
