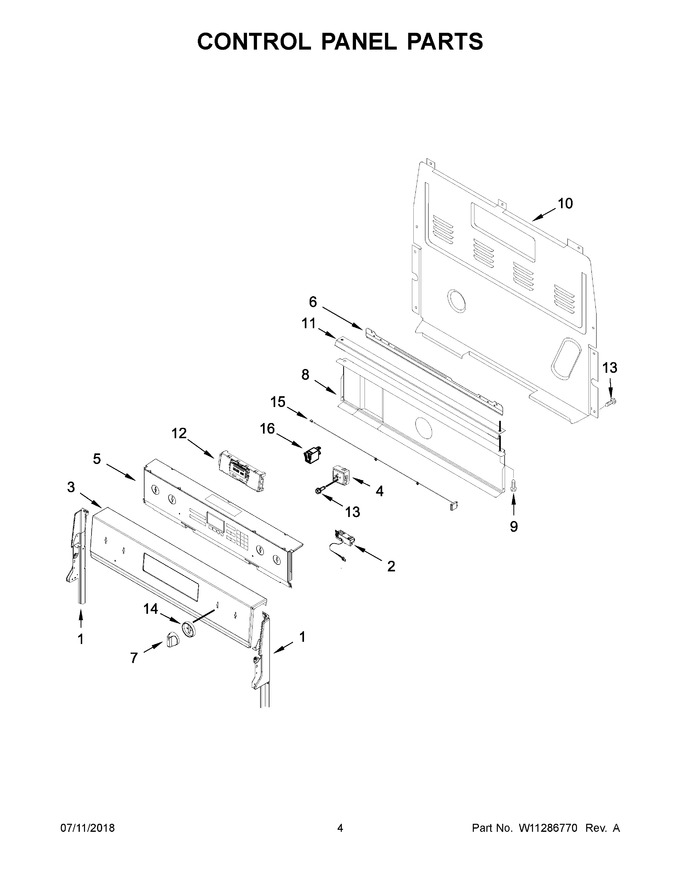

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	W11165979		Assembly, Wifi   (Replaces: W10888670)				$ 166.61
3	W11165617		Console (stainless)   (Replaces: W10869991)				$ 539.30
4	W11129442		Switch, Infinite (left Front)   (Replaces: W10437097)			Immediately	$ 100.57
5	W11178664		Bracket, Control (includes Overlay) (black)   (Replaces: W10856353)				$ 780.95
6	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 222.43
7	W11416802		Knob (stainless)   (Replaces: W10917219)			Immediately	$ 74.93
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W11165552		Control, Maxwell   (Replaces: W10871059)			Immediately	$ 377.65
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W10918419		Bezel (stainless)			Immediately	$ 75.51
15	W11291077		Antenna   (Replaces: W11223046)		Appelez-nous	-
16	WP8523265		Hot Surface Indicator   (Replaces: W10432504)			Immediately	$ 86.31
14A	W10917223		Bezel (black Stainless)		Appelez-nous	-
1A	W11213292		Endcap (black (right))				$ 71.65
3A	W11165616		Console (black Stainless)   (Replaces: W10881625)				$ 539.33
4A	W10857622		Switch, Infinite (right Front)   (Replaces: W10437092)			Immediately	$ 211.69
4B	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
4C	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
7A	W11674369		Knob (black Stainless)   (Replaces: W10917220)				$ 21.54
