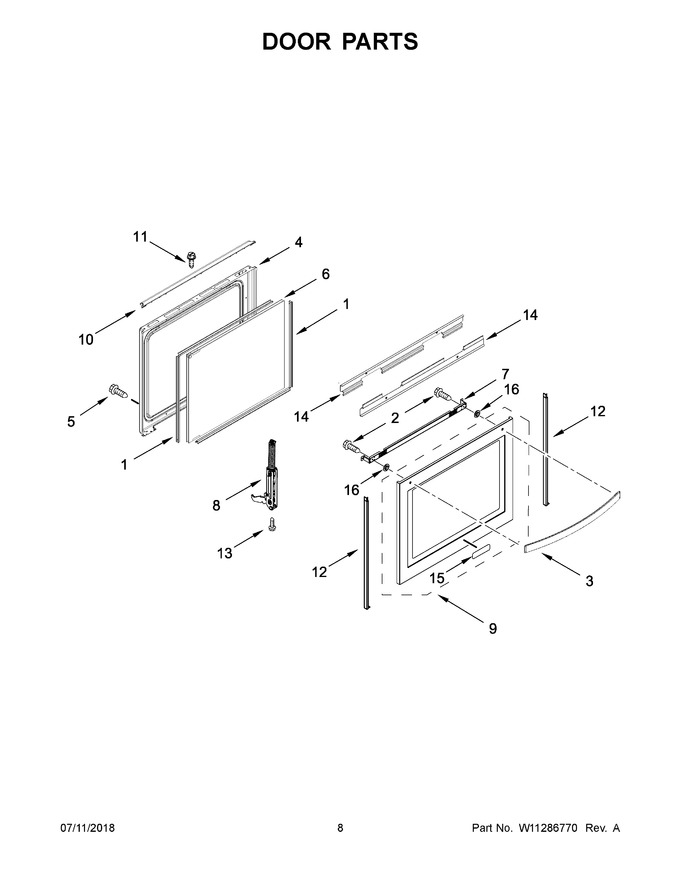

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11673273 | Spacer, Glass (Replaces: W10813142) |
|
Immediately | $ 31.04 | ||||
| 2 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 3 | W11107877 | Handle, Door (stainless) (Replaces: W10918786) |
|
Immediately | $ 264.75 | ||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 335.04 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W11088591) |
|
$ 171.17 | |||||
| 7 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 8 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 123.92 | ||||
| 9 | W11106273 | Glass Assembly, Outer Door (stainless) (Replaces: W10864214) |
|
$ 517.73 | |||||
| 10 | W11182113 | Vent, Trim (black) (Replaces: W10887939) |
|
$ 135.70 | |||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 76.19 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 14 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 177.21 | ||||
| 15 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 16 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 3A | W11110500 | Handle, Door (black Stainless) (Replaces: W10903342) |
|
$ 195.52 | |||||
| 9A | W11107401 | Glass Assembly, Outer Door (black Stainless) (Replaces: W10888239) |
|
$ 612.73 |
