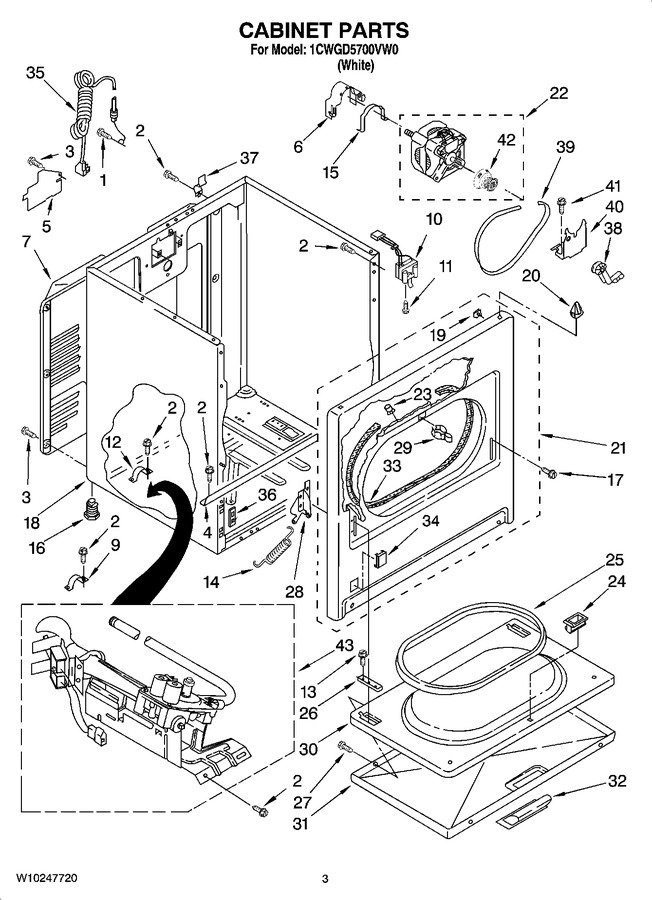

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, 10-32 X 5/8 (external Ground) (Replaces: 697776) |
|
$ 7.76 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8541400 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 599.76 | ||||
| 6 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.82 | ||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 341.30 | |||||
| 9 | 341029 | Clamp, Elbow (burner) (Replaces: 3980175) |
|
- | |||||
| 10 | WP3406107 | Door, Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 12 | 341029 | Clamp, Pipe |
|
- | |||||
| 13 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 14 | WPW10041960 | Spring, Door (2) (Replaces: W10041960) |
|
Immediately | $ 40.67 | ||||
| 15 | WPW10121316 | Clamp, Motor (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 17 | 342043 | Screw, 10-32 X 3/8 |
|
- | |||||
| 18 | 8533643 | Cabinet (includes Illus. 4) (white) (Replaces: 8530603) |
|
$ 399.26 | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 12.68 | ||||
| 21 | 279740 | Panel Front (white) (Replaces: 3395197) |
|
$ 361.97 | |||||
| 22 | 279827 | Motor Assembly 60 Hz. (Replaces: W10194250) |
|
Immediately | $ 191.95 | ||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | WP3389441 | Catch, Door Assembly (Replaces: 3389441) |
|
$ 6.20 | |||||
| 25 | W10906683 | Seal, Door (Replaces: 3390731) |
|
$ 128.53 | |||||
| 26 | W11252547 | Clip, Hinge (2) (Replaces: 337189) |
|
$ 21.39 | |||||
| 27 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.19 | |||||
| 28 | WP8066056 | Hinge, R.h. (Replaces: 8066056) |
|
Immediately | $ 98.56 | ||||
| 28 | WP8066057 | Hinge, L.h. (Replaces: 8066057) |
|
$ 96.14 | |||||
| 29 | 279570 | Strike, Panel (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 30 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 254.56 | |||||
| 31 | WP3393549 | Door, Front (white) (Replaces: 3393549) |
|
$ 176.51 | |||||
| 32 | W10877261 | Handle, Door (white) (Replaces: W10095180) |
|
$ 86.45 | |||||
| 33 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 34 | 3394975 | Plug, Front Panel (white) |
|
$ 5.70 | |||||
| 35 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 120.59 | |||||
| 36 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 37 | WP8066217 | Hinge, Top (2) (Replaces: 8066217) |
|
$ 7.82 | |||||
| 38 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 39 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 40 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 13.37 | ||||
| 42 | WP8066184 | Pulley, 60 Hz. (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 43 | W10823508 | Burner Assembly, 60 Hz. (see Pages 7 & 8 For Further Burner Breakdown) (Replaces: 8318272) |
|
$ 490.93 |
