01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

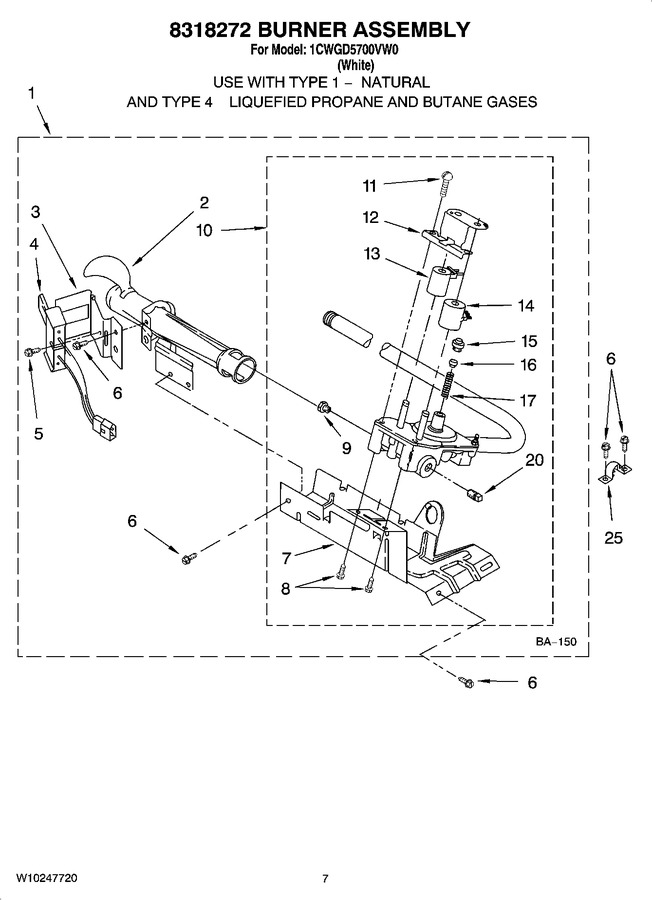

04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823508 | Burner Assembly 60 Hz. (type 1) (white Rodgers) (Replaces: 8318272) |
|
$ 490.93 | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 179.88 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 25.92 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw & Washer (8-32 X 5/8) (Replaces: 3393909) |
|
$ 7.50 | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 7 | 693986 | Base, Burner |
|
- | |||||
| 8 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 3387057) |
|
Immediately | $ 7.19 | ||||
| 9 | WP229742 | Orifice, Burner (type 4 (butane)) (Replaces: 229742) |
|
$ 34.85 | |||||
| 9 | WP234826 | Orifice, Burner (type 1) (Replaces: 234826) |
|
$ 37.40 | |||||
| 9 | WP234868 | Orifice, Burner (type 4 (propane)) (Replaces: 234868) |
|
$ 34.85 | |||||
| 10 | WP8318277 | Valve, 60 Hz. (includes Pipe & Illus. 7) (Replaces: 8318277) |
|
$ 325.31 | |||||
| 11 | 694421 | Screw, 8-32 X 1/2 (2) |
|
- | |||||
| 12 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 13 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 14 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 15 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 34.57 | |||||
| 16 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.95 | |||||
| 17 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 24.27 | |||||
| 20 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 25 | 341029 | Clamp, Pipe |
|
- | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 49572A | Conversion Kit (type (1) To Type (4) Lpg). (Replaces: 694572) |
|
Immediately | $ 36.19 | |||||
| 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 53.85 | |||||
| 346764 | Kit, Hold-down (gas Dryer Mobile Home Installation) |
|
- | ||||||
| 3406839 | Dry Rack |
|
Immediately | $ 65.68 | |||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| W10218247 | Paint, Pressurized Spray (12 Oz.) (magna Red) |
|
$ 29.91 | ||||||
| 350938 | Paint, Pressurized Spray(12 Oz.) (primer, Gray) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
