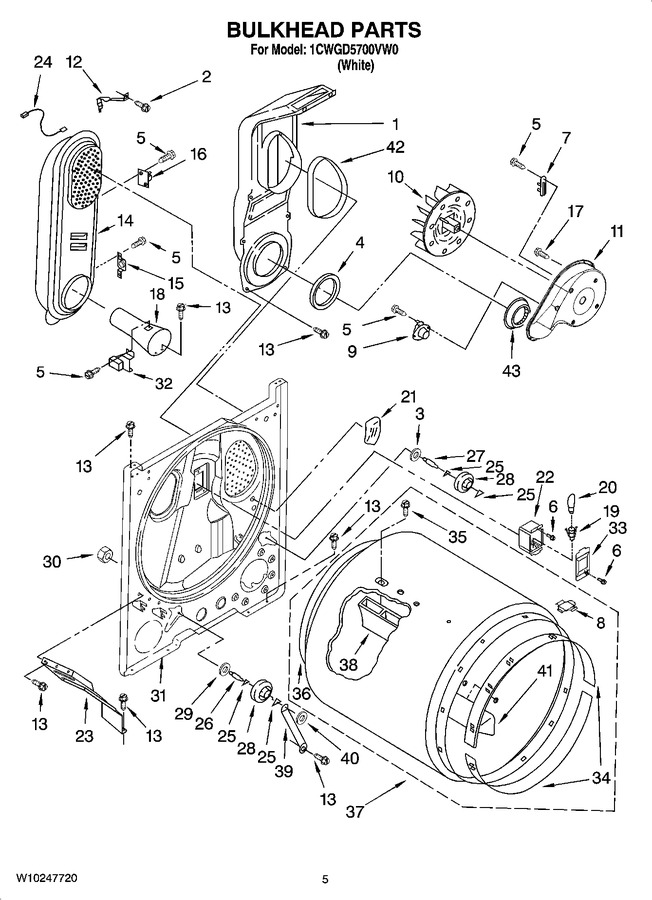

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 175.01 | |||||
| 2 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 3 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 7 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 9 | WP8318268 | Thermostat, Internal-bias (Replaces: 8318268) |
|
Immediately | $ 80.57 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 177.95 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 279980 | Box, Heater (Replaces: 8530285) |
|
$ 315.51 | |||||
| 15 | W11050897 | Thermostat, 205~f (96~c) (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 16 | W11050897 | Kit, Thermal Cut-off (includes Illus. 15) (Replaces: 280010) |
|
Immediately | $ 15.30 | ||||
| 17 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 18 | WP8066049 | Funnel, Burner (Replaces: 8066049) |
|
$ 149.05 | |||||
| 19 | W11700522 | Socket Assembly (Replaces: W10136369) |
|
$ 73.15 | |||||
| 20 | WP22002263 | Bulb (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 21 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 152.01 | |||||
| 22 | 3977373 | Bracket, Drum Light |
|
$ 105.79 | |||||
| 23 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 56.08 | |||||
| 24 | WP3401707 | Wire, Jumper (Replaces: 3401707) |
|
$ 82.47 | |||||
| 25 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 26 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 27 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 28 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 29 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 30 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 31 | W10828905 | Bulkhead (Replaces: 3403414) |
|
Immediately | $ 359.30 | ||||
| 32 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 33 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 34 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 35 | W10853898 | 8-16 X. 750 Mhw Tlr (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 36 | W10612022 | Seal, Rear Drum (Replaces: 3406130) |
|
Immediately | $ 57.15 | ||||
| 37 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 357.65 | |||||
| 38 | WP692490 | Baffle, Drum (2) (Replaces: 692490) |
|
$ 159.27 | |||||
| 39 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 20.94 | |||||
| 40 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 41 | WP3403636 | Baffle, Drum (1) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 42 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 43 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 |
