SELECT A DIAGRAM

01 - Cover Sheet

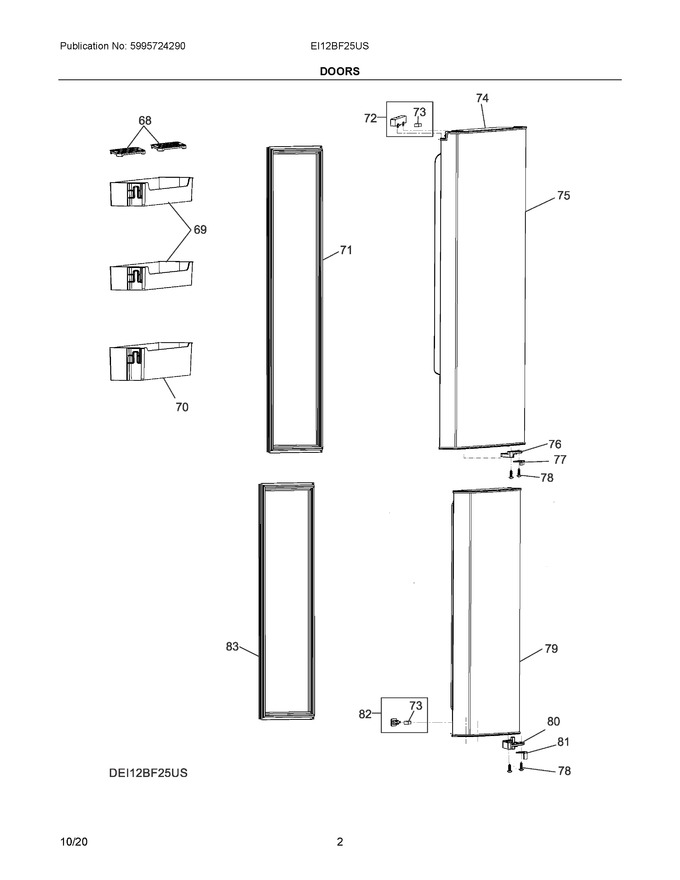

02 - Doors


03 - Cabinet


04 - Shelves


05 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
68	5304519512		Tray, Egg, (2)				$ 12.05
69	5304519513		Bin, Door, Small				$ 132.68
70	5304519514		Bin, Door, Large				$ 103.05
71	5304519515		Gasket, Door, Fresh Food				$ 97.11
72	5304526174		Magnet Assembly, Upper Door, W/cover			Immediately	$ 16.69
73	5304519517		Magnet, Door, (2)				$ 10.36
74	5304519518		Cover, Door, Fresh Food, Upper		Appelez-nous	-
75	5304519519		Door Assembly, Fresh Food, Stainless				$ 449.49
76	5304519520		Stopper, Door, Fresh Food, Rh Swing				$ 42.53
77	5304519522		Stop, Door, Fresh Food				$ 26.94
78	5304519523		Screw, Self Tapping, (4)		Appelez-nous	-
79	5304519524		Door Assembly, Freezer, Stainless				$ 432.39
80	5304519525		Stopper, Door, Freezer				$ 9.93
81	5304519526		Bracket, Stop, Freezer Door				$ 11.34
82	5304526175		Magnet Assembly, Lower Door, W/cover				$ 12.77
83	5304519528		Gasket, Door, Freezer				$ 93.56
NIA	5304519521		Stopper, Door, Fresh Food, Lh Swing				$ 10.63

    View Diagram in Separate Window       Print Part List
