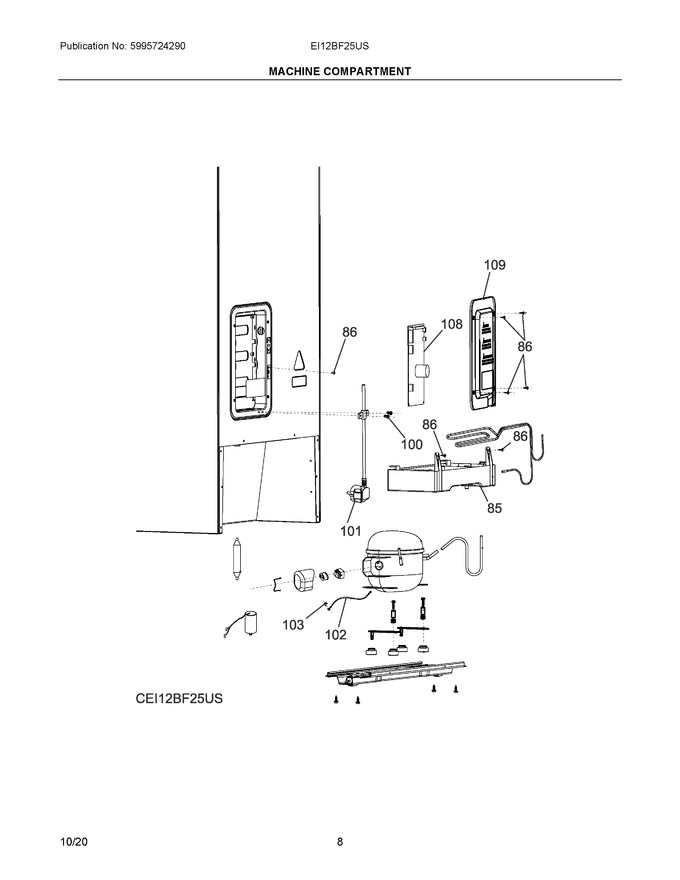

05 - Machine Compartment
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 85 | 5304519590 | Pan, Drain |
|
- | |||||
| 86 | 5304519591 | Screw, Self Tapping, (8) |
|
- | |||||
| 100 | 5304519592 | Screw, Self Tapping, (2) |
|
- | |||||
| 101 | 5304519593 | Power Cord, Electric, Service |
|
$ 138.20 | |||||
| 102 | 5304519594 | Wire, Grounding |
|
- | |||||
| 103 | 5304519595 | Screw, Ground |
|
- | |||||
| 108 | 5304519596 | Pc Board, Control, Main |
|
$ 306.38 | |||||
| 109 | 5304519597 | Cover, Control Board |
|
- |
