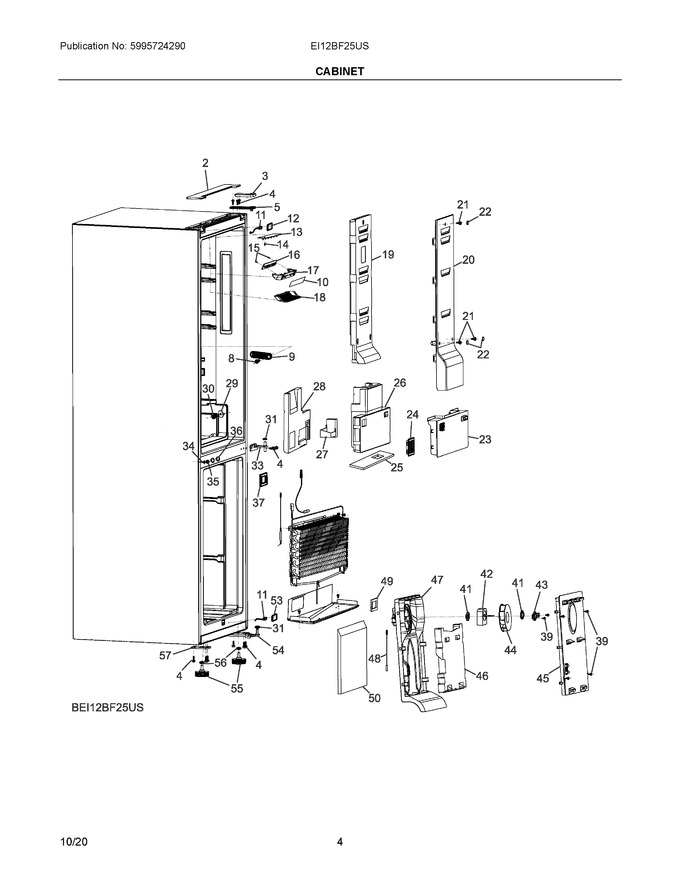

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304519529		Cover, Cabinet, Upper				$ 49.19
3	5304519530		Cover, Upper Hinge, Rh Swing		Appelez-nous	-
4	5304519532		Screw, Self Tapping, (11), Special Flange				$ 7.09
5	5304519533		Hinge, Door, Upper				$ 60.96
8	5304519534		Screw, Self Tapping		Appelez-nous	-
9	5304519535		Button, Insulation		Appelez-nous	-
10	5304519536		Overlay, Button Display				$ 36.86
11	5304519537		Switch, Reed, (2)				$ 92.67
12	5304519538		Cover, Reed Switch, Lh Upper				$ 9.22
13	5304519540		Lamp, Led				$ 125.89
14	5304519541		Screw, Self Tapping		Appelez-nous	-
15	5304519542		Screw, Self Tapping, (2)				$ 2.84
16	5304519543		Pc Board, Display				$ 238.85
17	5304519544		Housing, Display Board				$ 110.57
18	5304519545		Cover, Lamp				$ 28.35
19	5304519546		Insulation, Air Duct, Upper				$ 26.94
20	5304519547		Cover, Air Duct, Upper		Appelez-nous	-
21	5304519548		Screw, Self Tapping, (3)		Appelez-nous	-
22	5304519549		Cover, Screw Hole, (3)		Appelez-nous	-
23	5304519550		Cover, Air Duct, Lower		Appelez-nous	-
24	5304519551		Cover, Air Return, Fresh Food		Appelez-nous	-
25	5304519552		Seal, Air Duct, Lower				$ 56.70
26	5304519553		Insulation, Air Duct, Lower		Appelez-nous	-
27	5304519554		Damper, Assembly				$ 204.76
28	5304519555		Insulation, Damper				$ 45.36
29	5304519556		Washer, (2)		Appelez-nous	-
30	5304519557		Roller, Drawer, (2)		Appelez-nous	-
31	5304519558		Washer, Hinge Pin, (2)				$ 7.09
33	5304519559		Hinge, Middle				$ 53.87
34	5304519560		Screw, Self Tapping		Appelez-nous	-
35	5304519561		Cover, Screw Hole				$ 4.96
36	5304519562		Cover, Screw Hole, (2)		Appelez-nous	-
37	5304519563		Washer, Sealing		Appelez-nous	-
39	5304519564		Screw, Self Tapping, (10)		Appelez-nous	-
41	5304519565		Grommet, Fan Motor, (2)		Appelez-nous	-
42	5304519566		Motor, Evaporator Fan			Immediately	$ 348.55
43	5304519567		Support, Fan Motor				$ 10.63
44	5304519568		Blade, Fan				$ 28.35
45	5304519569		Cover, Air Duct, Freezer				$ 119.22
46	5304519570		Insulation, Air Duct, Freezer		Appelez-nous	-
47	5304519571		Duct, Air, Freezer		Appelez-nous	-
48	5304519572		Sensor, Temperature			Immediately	$ 59.54
49	5304519573		Washer, Sealing		Appelez-nous	-
50	5304519574		Block, Sponge		Appelez-nous	-
53	5304519575		Cover, Reed Switch, Lower		Appelez-nous	-
54	5304519576		Hinge, Lower				$ 83.64
55	5304519577		Foot, Leveling, (2), Adjustable				$ 18.43
56	5304519578		Cushion, Leveling Foot, (2)				$ 5.67
57	5304519579		Bracket, Leveling Foot				$ 32.61
NIA	5304519531		Cover, Upper Hinge, Lh Swing				$ 12.06
NIA	5304519539		Cover, Reed Switch, Rh Upper				$ 9.22
