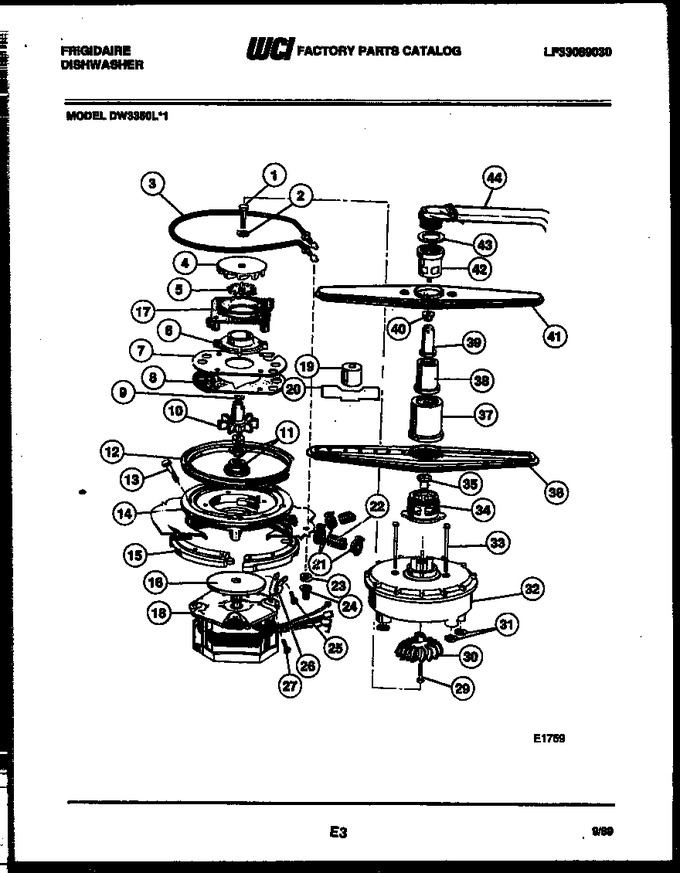

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806353 | Screw |
|
- | |||||
| 2 | 803367 | Washer |
|
- | |||||
| 3 | 809004 | Heater (includes No. 23 & 24) |
|
- | |||||
| 4 | 809005 | Impeller-upper |
|
- | |||||
| 5 | 808075 | Blade-macerator |
|
- | |||||
| 6 | 806267 | Shroud-impeller |
|
- | |||||
| 7 | 809006 | Plate-pump |
|
- | |||||
| 8 | 809007 | Gasket-pump |
|
- | |||||
| 9 | 806521 | O-ring |
|
- | |||||
| 10 | 809110 | Pump Seal Kit (includes No. 2, 4, 5, 9, 11, & 20) |
|
- | |||||
| 11 | 803903 | Water Seal |
|
- | |||||
| 12 | 809008 | Gasket |
|
- | |||||
| 13 | 807268 | Screw |
|
- | |||||
| 14 | 809009 | Housing |
|
- | |||||
| 15 | 807712 | Clamp-ring (2) |
|
- | |||||
| 16 | 809366 | Watershield Assembly |
|
- | |||||
| 17 | 809020 | Plate Spacer |
|
- | |||||
| 18 | 809100 | Motor Assy (includes No. 1, 9, 16, & 20) |
|
- | |||||
| 19 | 809100 | Motor Assy (includes No. 1, 9, 16, & 20) |
|
- | |||||
| 20 | 807077 | Gage-seal Shim |
|
- | |||||
| 21 | WP285655 | Clamp (Replaces: 808186) |
|
Immediately | $ 7.93 | ||||
| 22 | 808174 | Hose-connector |
|
- | |||||
| 23 | 5300806833 | Grommet-heater (Replaces: 806833) |
|
$ 5.34 | |||||
| 24 | 154106202 | Nut-heater (Replaces: 806834) |
|
Immediately | $ 18.32 | ||||
| 25 | 807270 | Screw |
|
- | |||||
| 26 | 808442 | Clamp |
|
- | |||||
| 27 | 809022 | Screw |
|
- | |||||
| 28 | 809016 | O-ring |
|
- | |||||
| 29 | 809073 | Screw |
|
- | |||||
| 30 | 809014 | Diffuser |
|
- | |||||
| 31 | 809015 | O-ring |
|
- | |||||
| 32 | 809011 | Filter-body |
|
- | |||||
| 33 | 809012 | Screw |
|
- | |||||
| 34 | 809046 | Bearing |
|
- | |||||
| 35 | 809018 | Bolt-spray Arm |
|
- | |||||
| 36 | 808177 | Spray Arm Assy |
|
- | |||||
| 37 | 808178 | Base-tower |
|
- | |||||
| 38 | 808179 | Tower Section |
|
- | |||||
| 39 | 808180 | Tower Tip |
|
- | |||||
| 40 | 808181 | Nut |
|
- | |||||
| 41 | 809021 | Spray Arm Assy |
|
- | |||||
| 42 | 808183 | Distributor |
|
- | |||||
| 43 | 808184 | Gasket |
|
- | |||||
| 44 | 808185 | Tube & Elbow Assy |
|
- |
