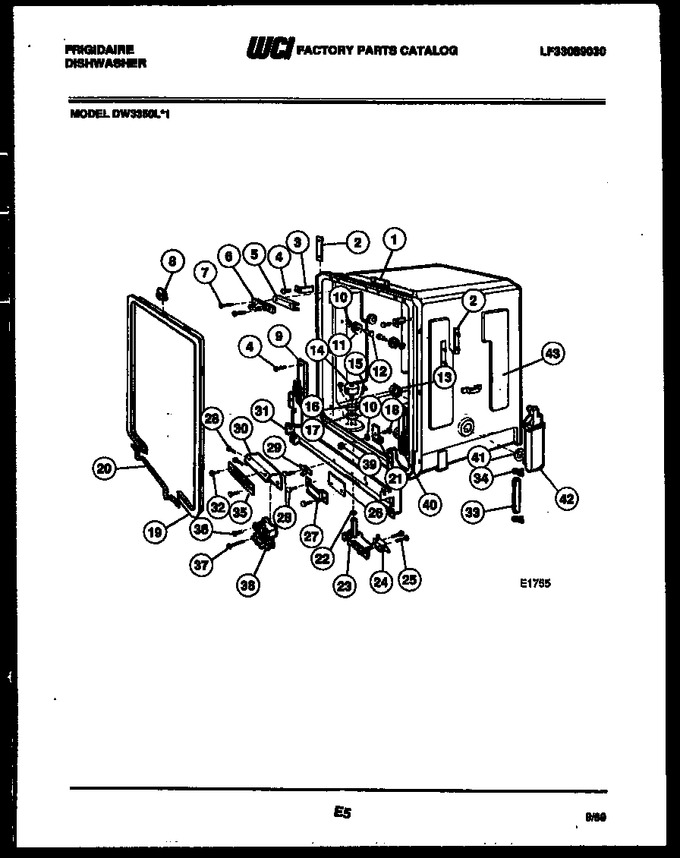

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808868 | Plate-latch |
|
- | |||||
| 2 | 807038 | Plate |
|
- | |||||
| 3 | 807454 | Tub Pad |
|
- | |||||
| 4 | 806539 | Screw |
|
- | |||||
| 5 | 809214 | Shim |
|
- | |||||
| 6 | 807015 | Strike-door |
|
- | |||||
| 7 | 806890 | Screw |
|
- | |||||
| 8 | 805763 | Tub-gasket, Clip Kit (includes No. 21) |
|
- | |||||
| 9 | 807470 | Arm Guide - Lh |
|
- | |||||
| 10 | 809044 | Washer |
|
- | |||||
| 11 | 807180 | Roller - Tub |
|
- | |||||
| 12 | 808564 | Screw & Washer Kit (includes No. 10) |
|
- | |||||
| 13 | 805669 | Nut |
|
- | |||||
| 14 | 804630 | Float |
|
- | |||||
| 15 | 807268 | Screw |
|
- | |||||
| 16 | 808064 | Plate-float |
|
- | |||||
| 17 | 808063 | Gasket-float |
|
- | |||||
| 18 | WP250830 | Screw (Replaces: 803319) |
|
$ 7.90 | |||||
| 19 | 809035 | Gasket & Wire Assy (includes No. 8 & 20) |
|
- | |||||
| 20 | 809320 | Wire - Gasket |
|
- | |||||
| 21 | COMM PART | Clip (Replaces: 808115) |
|
- | |||||
| 22 | 807759 | O-ring |
|
- | |||||
| 23 | 807677 | Float Switch Kit (includes No. 16, 17, 22, 24, & 25) |
|
- | |||||
| 24 | 807680 | Switch-float |
|
- | |||||
| 25 | 804594 | Screw |
|
- | |||||
| 26 | 809144 | Shield-wire |
|
- | |||||
| 27 | 806723 | Clamp-wire |
|
- | |||||
| 28 | WP90767 | Screw (Replaces: 808658) |
|
Immediately | $ 7.43 | ||||
| 29 | 807213 | Terminal-ground |
|
- | |||||
| 30 | 807849 | Bracket |
|
- | |||||
| 31 | 808739 | Hinge Assembly |
|
- | |||||
| 32 | 807501 | Screw |
|
- | |||||
| 33 | 807891 | Tubing-water (includes No. 34) |
|
- | |||||
| 34 | 807813 | Clamp |
|
- | |||||
| 35 | COMM PART | Terminal Block (Replaces: 807486) |
|
- | |||||
| 36 | WP488234 | Screw (Replaces: 806593) |
|
$ 6.37 | |||||
| 37 | 804672 | Screw |
|
- | |||||
| 38 | 805255 | Relay-motor |
|
- | |||||
| 39 | 803346 | Nut |
|
- | |||||
| 40 | 807471 | Arm Guide - Rh |
|
- | |||||
| 41 | 803573 | Gasket |
|
- | |||||
| 42 | 806470 | Water Inlet |
|
- | |||||
| 43 | 809347 | Tub & Gasket |
|
- | |||||
| *26520 | W10841140 | Tub Touch-up Kit (optional) (Replaces: 807509) |
|
Immediately | $ 26.17 |
