02 - Door Parts
03 - Console And Control Parts
04 - Cam
05 - Motor Pump Parts
06 - Tub Parts
07 - Top Parts
08 - Racks And Trays
09 - Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

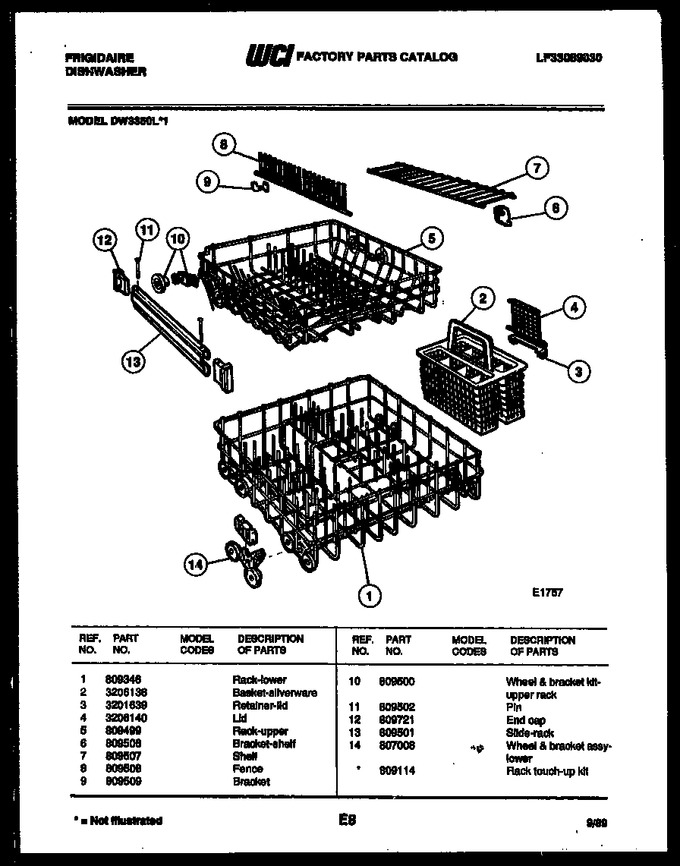

| 1 | 809346 | Rack-lower |
|
- | |||||
| 2 | 3206138 | Basket-silverware |
|
- | |||||
| 3 | 3201639 | Retainer-lid |
|
- | |||||
| 4 | 3206140 | Lid |
|
- | |||||
| 5 | 809499 | Rack-upper |
|
- | |||||
| 6 | 809506 | Bracket-shelf |
|
- | |||||
| 7 | 809507 | Shelf |
|
- | |||||
| 8 | 809508 | Fence |
|
- | |||||
| 9 | 809509 | Bracket |
|
- | |||||
| 10 | 809500 | Wheel & Bracket Kit-upper Rack |
|
- | |||||
| 11 | 809502 | Pin |
|
- | |||||
| 12 | 809721 | End Cap |
|
- | |||||
| 13 | 809501 | Slide-rack |
|
- | |||||
| 14 | 807008 | Wheel & Bracket Assy-lower |
|
- | |||||
| *26521 | 809114 | Rack Touch-up Kit |
|
- |
