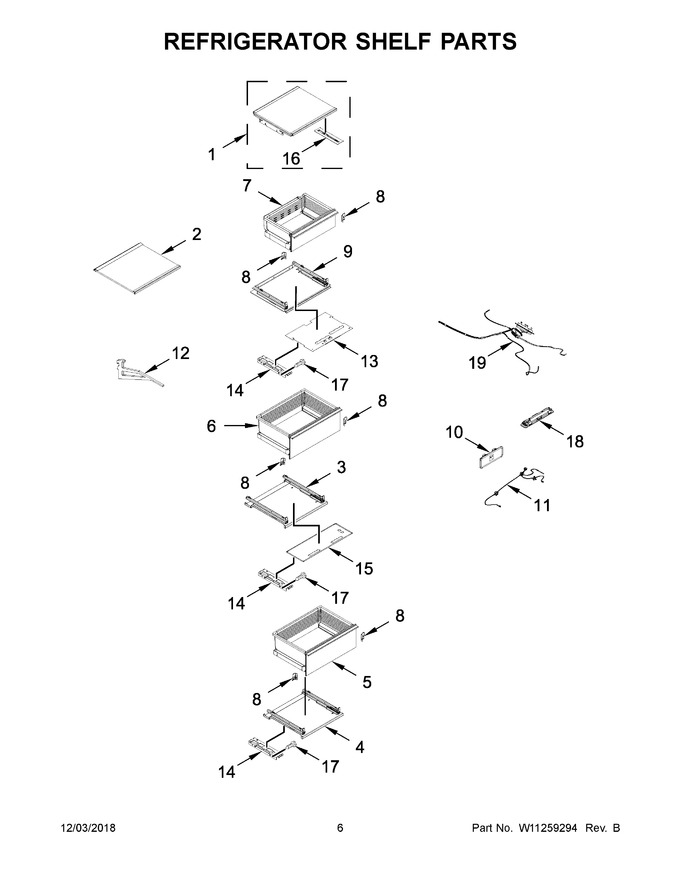

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11234559		Assembly, Deli Shelf   (Replaces: W10824595)				$ 432.40
2	W11234495		Assembly, Shelf   (Replaces: W11032683)				$ 365.17
3	W11232781		Assembly, Upper Crisper Slide Support   (Replaces: W10824121)		Appelez-nous	-
4	W11232782		Assembly, Lower Crisper Slide Support   (Replaces: W10821602)		Appelez-nous	-
5	W11249242		Assembly, Bottom Crisper Pan   (Replaces: W11022754)				$ 415.01
6	W11249243		Assembly, Middle Crisper Pan   (Replaces: W11022755)		Appelez-nous	-
7	W11234513		Assembly, Deli   (Replaces: W10816761)				$ 418.14
8	W11235126		Clip, Retainer (left Hand)   (Replaces: W10856559)		Appelez-nous	-
9	W11232780		Assembly, Deli Slide Support   (Replaces: W10824234)			Immediately	$ 219.36
10	W11234857		Housing, Crisper Thermistor   (Replaces: W11047771)				$ 246.30
11	W11234859		Harness, Crisper Led (includes Thermistor)   (Replaces: W10909590)				$ 152.41
12	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
13	W11306695		Panel, Mullion   (Replaces: W11024696)		Appelez-nous	-
14	W11302039		Bracket, Support   (Replaces: W11045476)		Appelez-nous	-
15	W11306698		Plate, Crisper Support Led   (Replaces: W10902249)		Appelez-nous	-
16	W11265008		Thermistor (includes Cover)			Immediately	$ 129.80
17	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 14.75
18	W11233384		Assemby, Light Strip   (Replaces: W10914639)			Immediately	$ 205.89
19	W10818566		Harness, Mullion		Appelez-nous	-
8A	W11235128		Clip, Retainer (right Hand)   (Replaces: W10856558)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
